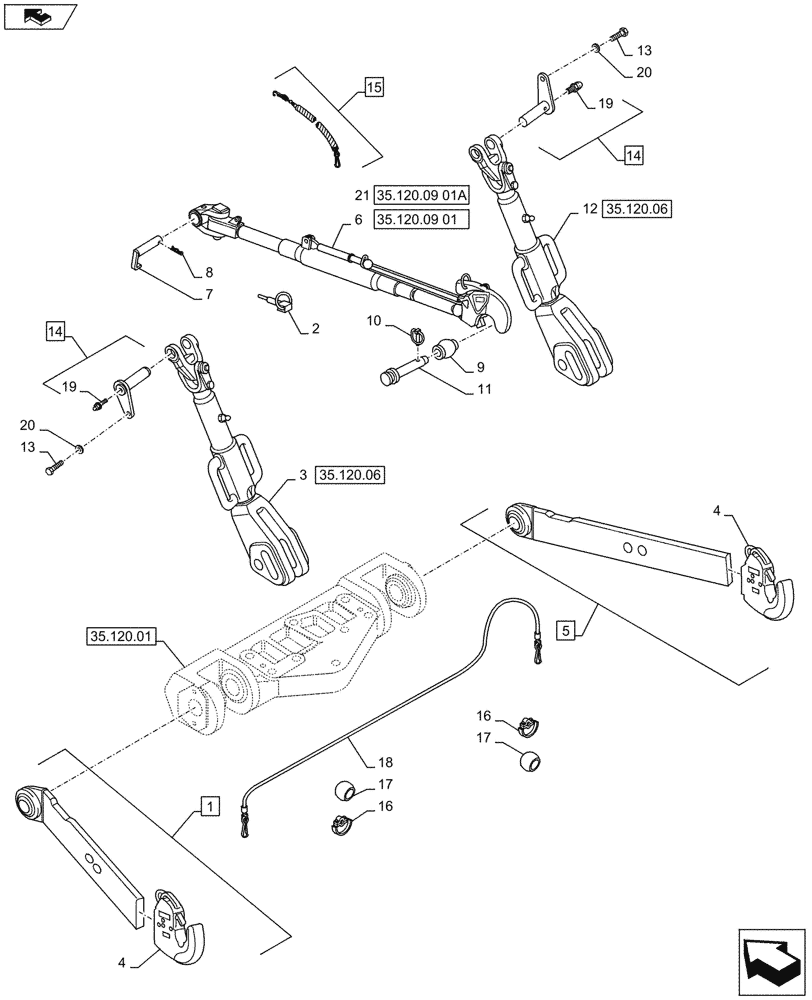

Запчасти Case IH PUMA 160 (35.120.04) - VAR - 390923 - THREE POINT HITCH - CAT 2/3 QUICK ATTACH LINKS (35) - HYDRAULIC SYSTEMS

1

87377617

LOWER LINK

LH, Incl 4

1шт.

2

82014909

LOCK PIN,5.5mm OD

Puma 160

1шт.

3

87377623

LIFT LINK

LH

1шт.

4

87315107

HOOK

2шт.

5

87377616

LOWER LINK

RH, Incl 4

1шт.

6

84157355

UPPER LINK

ASSY, Top Link Cat 3, Serial Range: -C7395

1шт.

7

5191449

PIN,27.9mm OD x 152mm L

Puma 130, 145

1шт.

7

47133787

PIN,27.9mm OD x 175mm L

Puma 160

1шт.

8

578668

COTTER PIN,10.7mm OD x 80mm L

1шт.

9

5116059

BUSHING,25.4mm ID x 60mm OD x 51mm L

Cat 2

1шт.

9

5116060

BUSHING,32mm ID x 60mm OD x 51mm L

Cat 3

1шт.

10

5166585

LOCK PIN,11mm OD

1шт.

11

822483

PIN,25.5mm OD x 137mm L

1шт.

11

44015196

PIN,31.75mm OD x 146mm L

1шт.

12

87377622

LIFT LINK

RH

1шт.

13

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

14

47130642

PIN,25mm OD x 92mm L

Incl 19

2шт.

15

5174402

LINK CHAIN,1500mm L

1шт.

16

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

Cat 2

2шт.

16

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

Cat 3

2шт.

17

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

Cat 2

2шт.

17

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

2шт.

18

5116063

ROPE,4500mm L

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

2шт.

20

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

21

84517031

UPPER LINK

ASSY, Top Link Cat 3, Start Serial: D7395

1шт.
