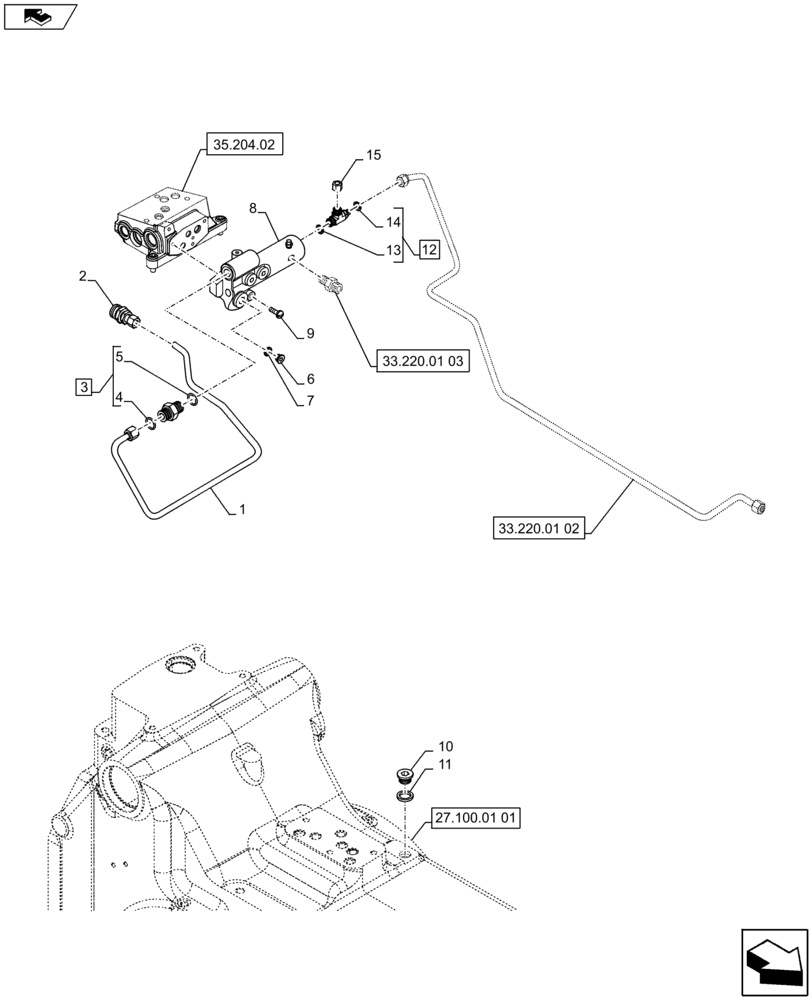

Запчасти Case IH PUMA 160 (33.220.01[01]) - VAR - 330718 - HYDRAULIC TRAILER BRAKE (UNIVERSAL) - BRAKE VALVE & LINES - C7113 (33) - BRAKES & CONTROLS

1

84140187

PRESSURE PIPE

1шт.

2

5144514

HYDRAULIC VALVE

1шт.

3

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

M18 x 1.5, Incl 4, 5

1шт.

4

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

6

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

7

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

8

87694762

TRAILER BRAKE VALVE

1шт.

9

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

1шт.

9

14359421

HEX SOC SCREW,M8 x 75mm, Cl 8.8

2шт.

10

10273111

PLUG,M18 x 1.5 x 13

1шт.

11

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

12

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

Incl 13, 14

1шт.

13

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

14

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

15

9625546

CAP,11/16" - 16 ORFS

1шт.
