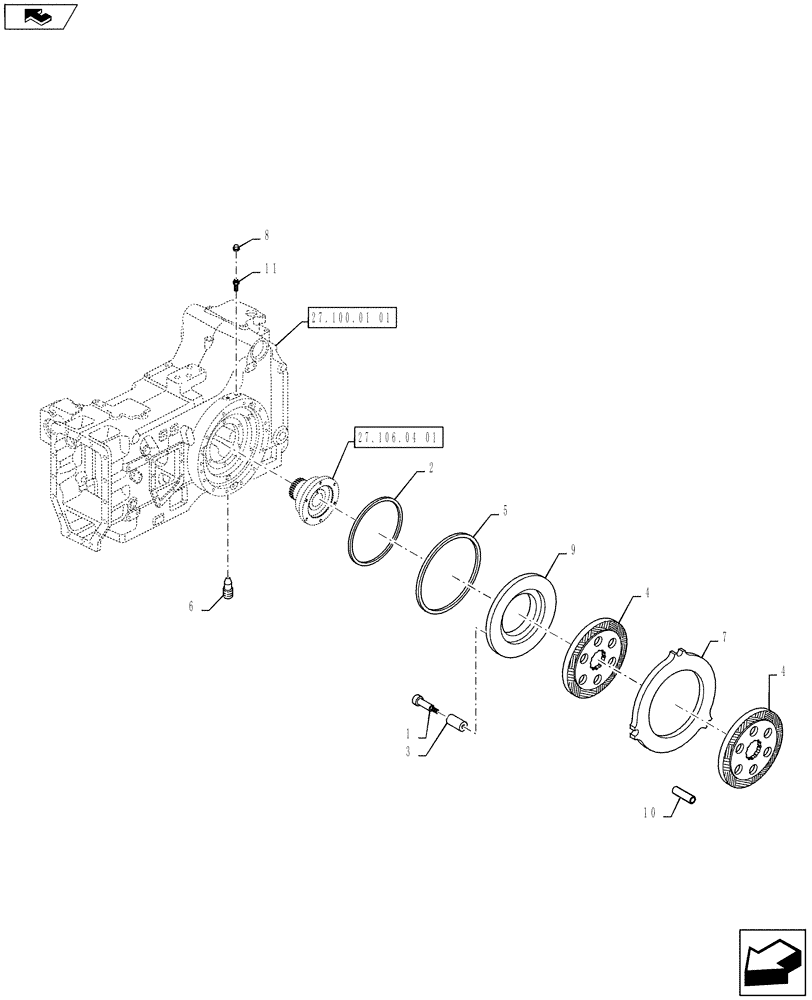

Запчасти Case IH PUMA 160 (33.202.07) - REAR AXLE - BRAKES - PUMA 160 (33) - BRAKES & CONTROLS

1

87699823

SCREW,M10 x 1.25 x 31.50mm, Cl 10.9

6шт.

2

84123144

GASKET,279.60mm ID x 286.40mm OD x 3.40mm

2шт.

3

87700832

BUSHING,15.3mm ID x 21.9mm OD x 19.83mm L

6шт.

4

84201664

BRAKE DISC,60mm ID x 327mm OD x 9.5mm Thk

4шт.

4

84329060

BRAKE DISC,60mm ID x 327mm OD x 9.6mm Thk

Extreme Duty, VAR. 333166, Start Serial: D6852

4шт.

5

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

2шт.

6

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

2шт.

7

84146523

BRAKE DISC,245mm ID x 327.00mm OD x 22mm Thk

2шт.

8

5171793

BOOT

2шт.

9

84122255

PISTON

2шт.

10

87699677

PIN,15mm OD x 65mm L

6шт.

11

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

2шт.
