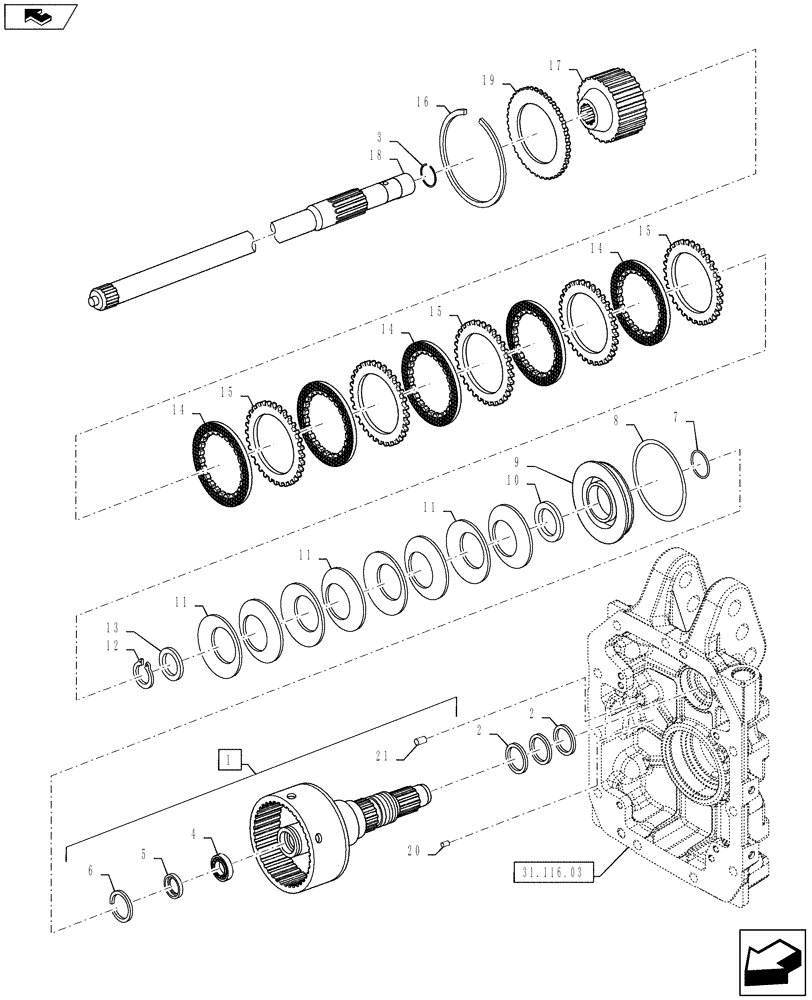

Запчасти Case IH PUMA 160 (31.116.06) - VAR - 390801, 332801, 330801, 332805, 330800, 330809 - PTO CLUTCH - CLUTCH & DISC ASSY (31) - IMPLEMENT POWER TAKE OFF

1

87374219

MAIN SHAFT,26T, 18T, 34T, 224.5mm L

540/750/1000 RPM, Std Build & VAR. 332801 - 332805, Incl 4 - 6, 20, 21

1шт.

1

87305531

MAIN SHAFT,26T, 18T, 220mm L

540/1000 RPM, VAR. 330800, Incl 4 - 6, 20, 21

1шт.

2

5175983

SEALING RING,46mm ID

SEALRING

3шт.

3

13398576

SNAP RING,M40, Int

1шт.

4

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

5

5182702

GASKET,25mm ID x 33mm OD x 4mm Thk

1шт.

6

5182717

SNAP RING,1.5mm Thk

1шт.

7

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

8

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

9

5198547

PISTON

1шт.

10

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

11

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

8шт.

12

5191305

CIRCLIP,54mm ID

1шт.

13

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

14

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

7шт.

15

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

CLUTCH DISK

7шт.

16

5162251

CIRCLIP,142.5mm ID

1шт.

17

87374253

HUB,Z32

PTO Clutch Plates, Std Build & VAR. 332801 - 332805

1шт.

17

5198672

HUB,Z32

PTO Clutch Plates, VAR. 330800

1шт.

18

87372761

PTO SHAFT,674mm L

1шт.

18

47130744

PTO SHAFT,21T, 20T, 182mm L

Additional 21 Spline Stub Shaft for Rear PTO, VAR. 330809

1шт.

19

5198545

CLUTCH PLATE,89mm ID x 152.6mm OD x 7.5mm Thk

1шт.

20

14536490

PLUG,8.00mm Dia x 15.70mm L

1шт.

21

14536590

PLUG,10.00mm Dia x 19.80mm L

1шт.
