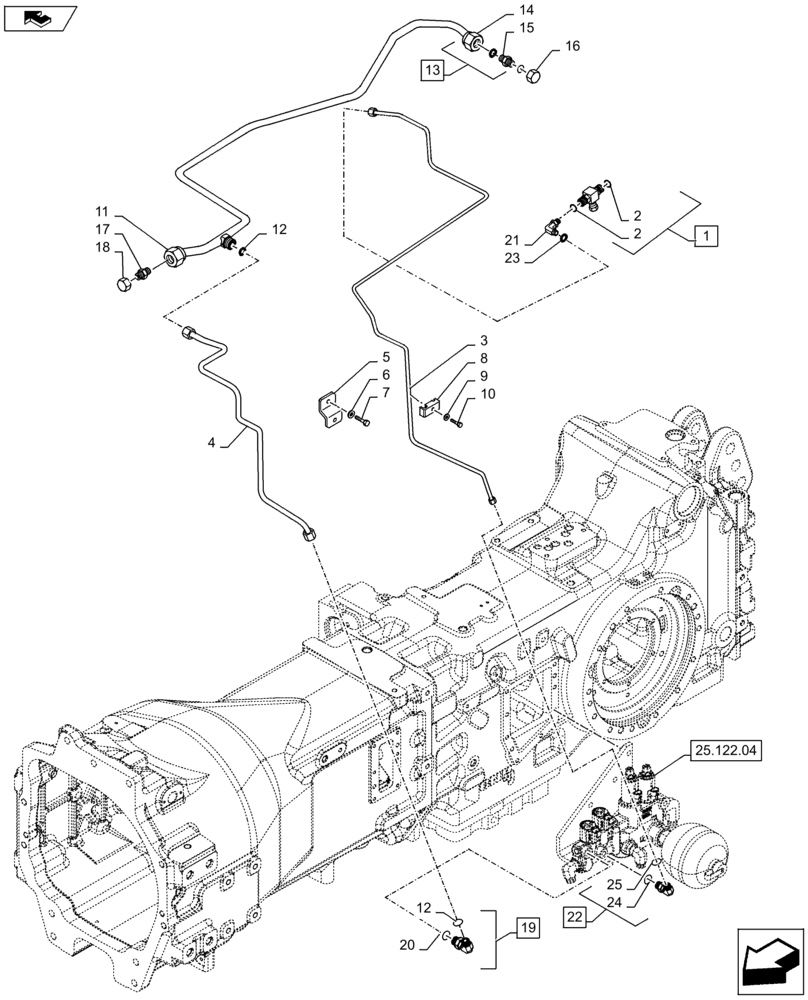

Запчасти Case IH PUMA 160 (25.122.03[01A]) - VAR - 330414, 330427, 330429, 330430 - SUSPENDED FRONT AXLE - CONTROL VALVE LINES - D7113 - C7286 (25) - FRONT AXLE SYSTEM

1

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

Incl 2

1шт.

2

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

3

84349443

PRESSURE PIPE

Load Sense

1шт.

4

84349440

PRESSURE PIPE

Valve Feed

1шт.

5

84140225

BRACKET

1шт.

6

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

7

9706690

NUT,M8 x 1.25, Cl 8

1шт.

8

84150135

CLAMP BRACKET

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

11

84370109

HYD TUBE,16.00mm OD x 1018.60mm

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

9840576

CAP,1" - 14 ORFS

1шт.

17

86978771

UNION,16mm L

1шт.

18

9840575

CAP,13/16" - 16 ORFS

1шт.

19

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

Incl 12, 20

1шт.

20

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

21

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

1шт.

22

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

Incl 24, 25

1шт.

23

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

24

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
