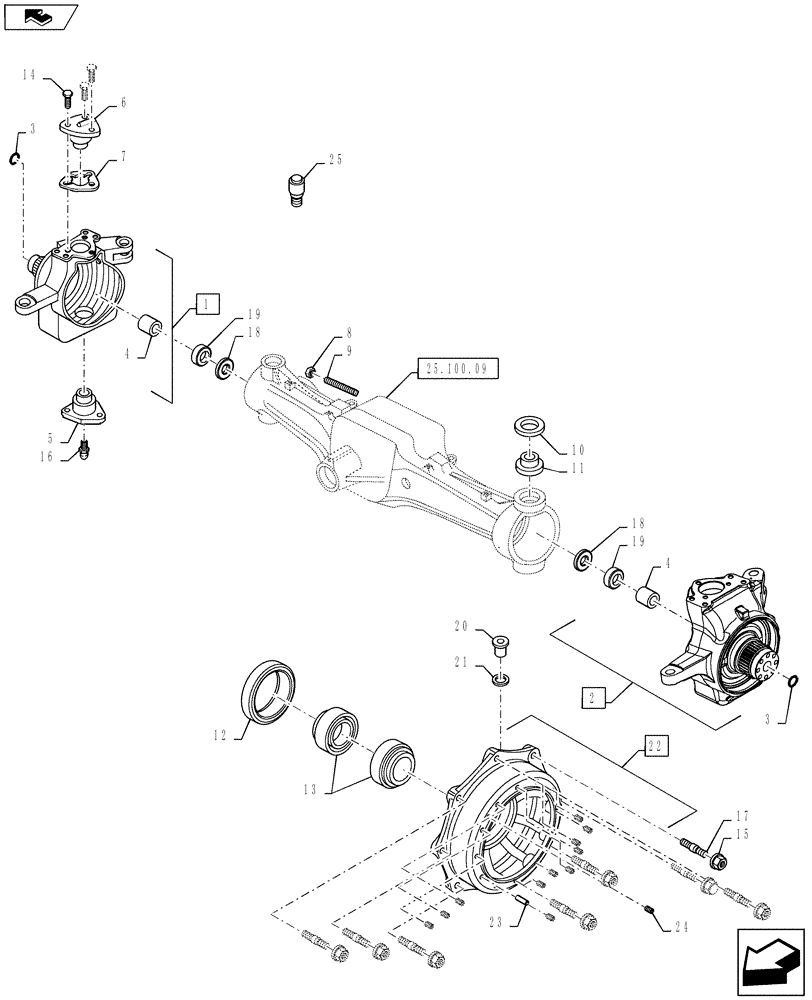

Запчасти Case IH PUMA 160 (25.108.12) - VAR - 330430 - CL.4 FRONT AXLE W/ BRAKES- STEERING KNUCKLE - HUB (25) - FRONT AXLE SYSTEM

1

87332318

STEERING KNUCKLE,RH

RH, Incl 4

1шт.

2

87332324

STEERING KNUCKLE,LH

LH, Incl 4

1шт.

3

14456881

O-RING,0.362" ID x 0.103" Width

2шт.

4

87660602

BUSHING,52mm ID x 56mm OD x 28mm L

2шт.

5

87333763

BALL STUD

2шт.

6

87361688

BALL STUD

1шт.

7

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

1шт.

7

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

7

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87471124

STUD,M18

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

4шт.

14

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

15

87678013

NUT,M16 x 1.5

16шт.

16

13407211

LUBE NIPPLE,M10 x 1

3шт.

17

87618916

STUD

16шт.

18

87598114

SPACER,53.00mm ID x 78.00mm OD x 4.00mm

2шт.

19

87397905

OIL SEAL,52.00mm ID x 72.00mm OD x 16.50mm

2шт.

20

10278340

PLUG,M28 x 1.5 x 11, Brass

2шт.

21

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

2шт.

22

84270398

HUB

Incl 23

2шт.

23

4985063

DOWEL,12mm OD x 20mm L

2шт.

24

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

32шт.

25

13413290

BREATHER

2шт.
