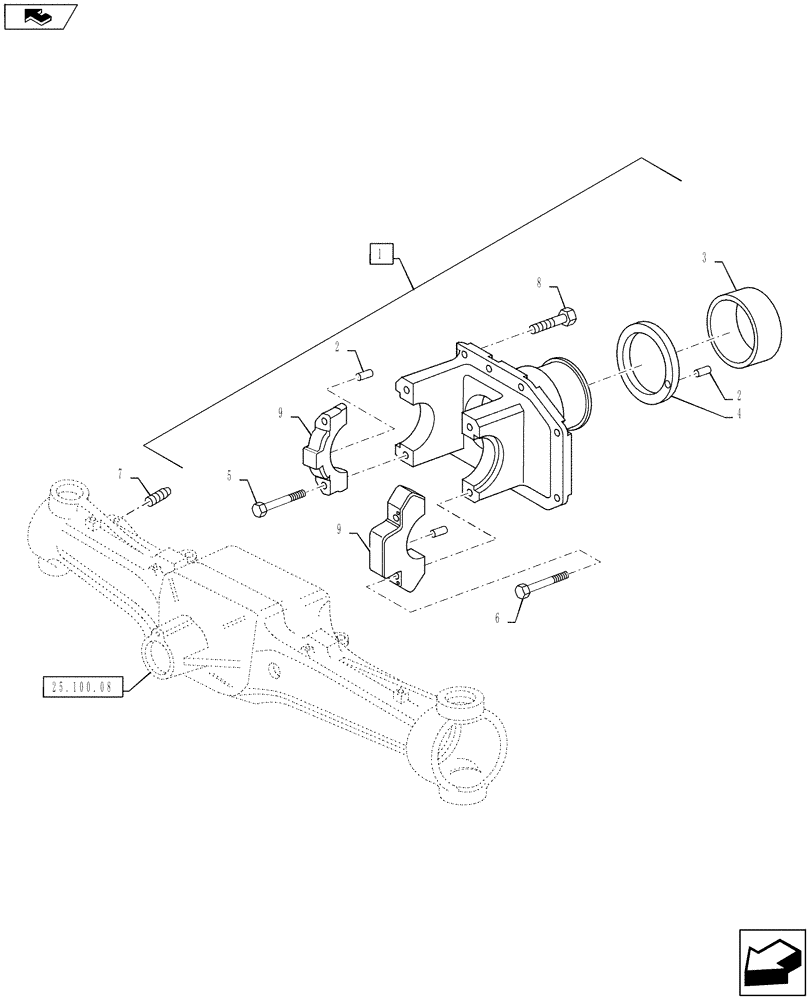

Запчасти Case IH PUMA 160 (25.102.01) - VAR - 390409 - CL.3 STANDARD FRONT AXLE - DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM

1

87523108

SUPPORT

Incl 2 - 6, 8, 9

1шт.

2

4966244

PIN,5mm OD x 15mm L

1шт.

3

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

4

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

Rear Axle Support Hinge

1шт.

5

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

6

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

2шт.

7

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

8

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.

9

5144634

THRUST BEARING

1шт.
