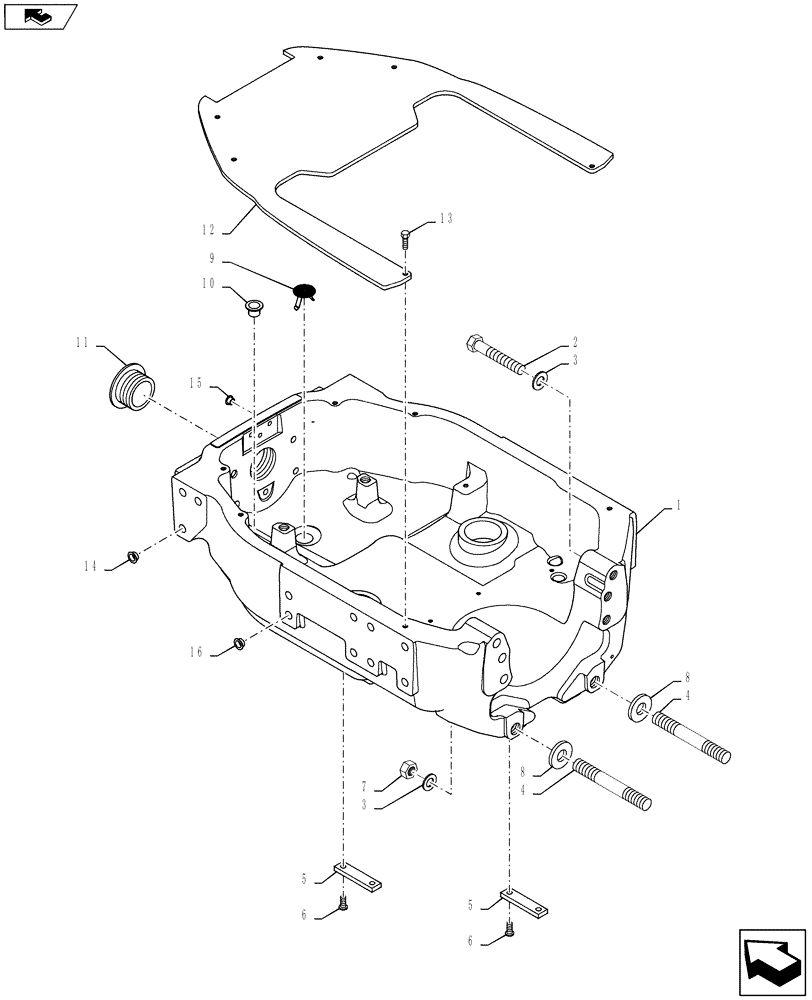

Запчасти Case IH PUMA 160 (25.100.01) - VAR - 309014 - AXLE SUPPORT - STANDARD 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM

1

84302305

SUPPORT

1шт.

2

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

6шт.

3

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

8шт.

4

87301866

STUD,M20 x 1.5 x 170mm, Cl 10.9

2шт.

5

87361847

SPACER,111mm L x 26mm W x 10mm Thk

2шт.

6

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

7

87312644

NUT,Hex, M20, 1.5 Pitch, 16mm High, Gr R12

2шт.

8

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

8

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

8

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

8

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

8

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

8

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

8

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

8

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

8

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

8

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

9

82021866

GRILLE

1шт.

10

87305541

PLASTIC PLUG,26.00mm, 36.00mm OD, 16.00mm D

1шт.

11

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

12

84149362

PLATE

1шт.

13

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

14

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

8шт.

15

85700614

DUST CAP,0.532", 0.750" OD, 0.437" D

4шт.

16

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.
