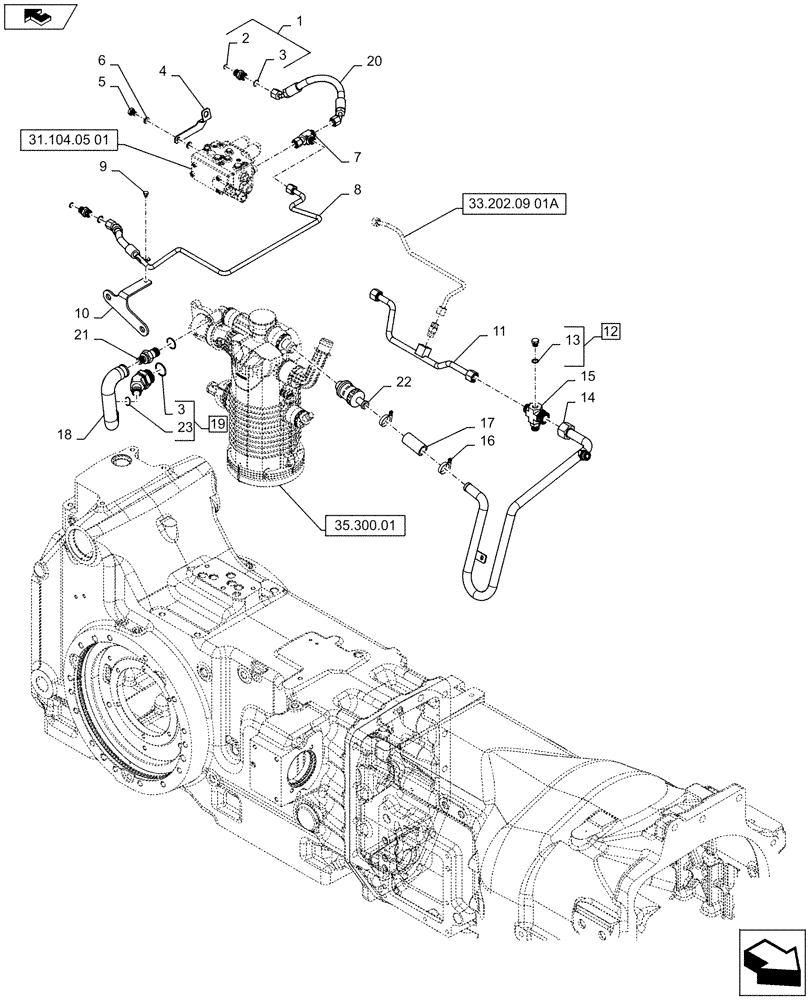

Запчасти Case IH PUMA 160 (21.102.03[01A]) - TRANSMISSION LUBRICATION LINES - D7113 (21) - TRANSMISSION

1

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

2

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

3

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

3шт.

4

84340705

BRACKET

1шт.

5

15540024

BOLT,Hex, M12 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

6

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

7

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

8

84349377

PRESSURE PIPE

RH Cylinder

1шт.

9

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

10

84174056

BRACKET

RH Cylinder Pipe, Puma 160

1шт.

11

84140173

PRESSURE PIPE

Lube

1шт.

12

86611704

PLUG,Hex, M14 x 1.5 ORB

1шт.

13

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

14

84349558

HYD TUBE

Pressure, Lube

1шт.

15

84299545

TEE

1шт.

16

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

17

87653735

HOSE,25mm ID x 70mm L

Sleeve

1шт.

18

84140156

PRESSURE PIPE

G Port

1шт.

19

87653734

45 ELBOW,1-7/16"-12 ORFS x M42 x 2 ORB

1шт.

20

84140196

HYDRAULIC HOSE

LH Cylinder

1шт.

21

84252094

HYD CONNECTOR,M42 X 2 x 22mm

1шт.

22

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

23

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.
