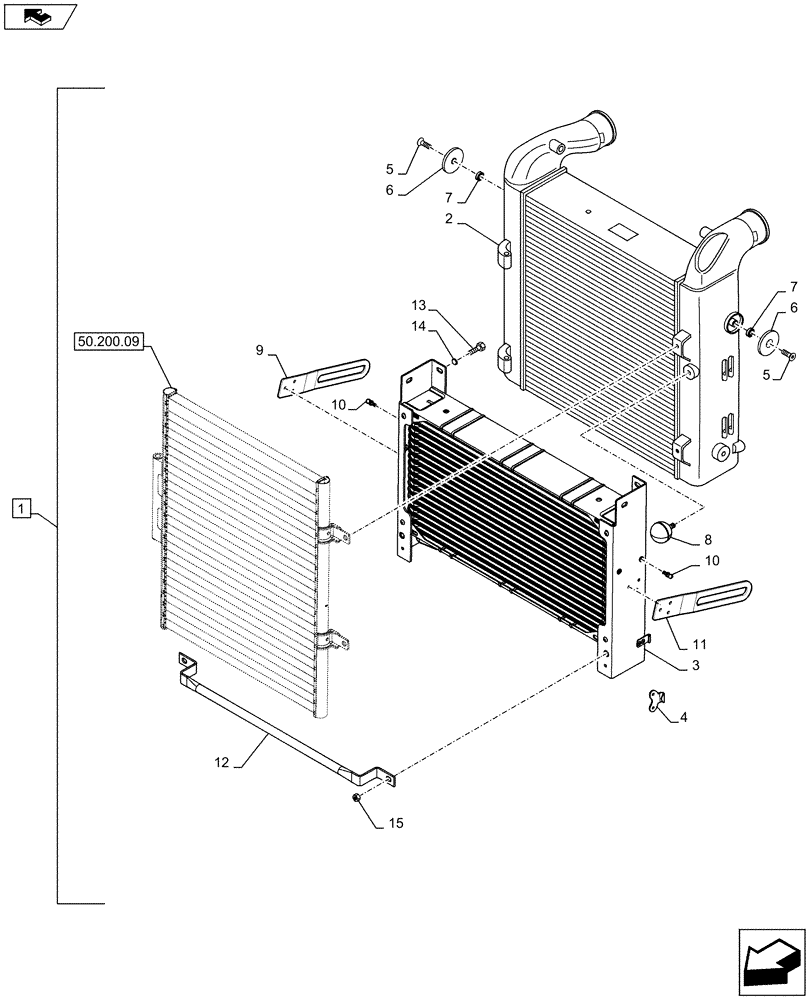

Запчасти Case IH PUMA 145 (10.406.02[01A]) - INTERCOOLER, TRANSMISSION OIL COOLER AND AIR CONDITIONING CONDENSER - D7381 (10) - ENGINE

1

47520405

INTERCOOLER

Incl 2 - 15

1шт.

2

84154154

AFTERCOOLER

1шт.

3

84249168

OIL COOLER

1шт.

4

84137496

SAFETY CATCH HOOK

1шт.

5

84137544

BOLT,Countersunk , M8 x 20mm

2шт.

6

84137491

WASHER,50.8mm ID

2шт.

7

87385194

ROLLER BEARING,8mm ID x 16mm OD x 5mm W

2шт.

8

87620057

KNOB

1шт.

9

84324074

BRACKET

RH

1шт.

10

84193371

STUD,M5

4шт.

11

84324075

BRACKET

LH

1шт.

12

84137570

HANDLE

1шт.

13

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

14

14496507

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

15

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.
