Запчасти Case IH PUMA 145 (10.254.06[01A]) - VAR - 330205 - ENGINE BLOCK AND TRANSMISSION OIL HEATERS - 110V - D7114 (10) - ENGINE

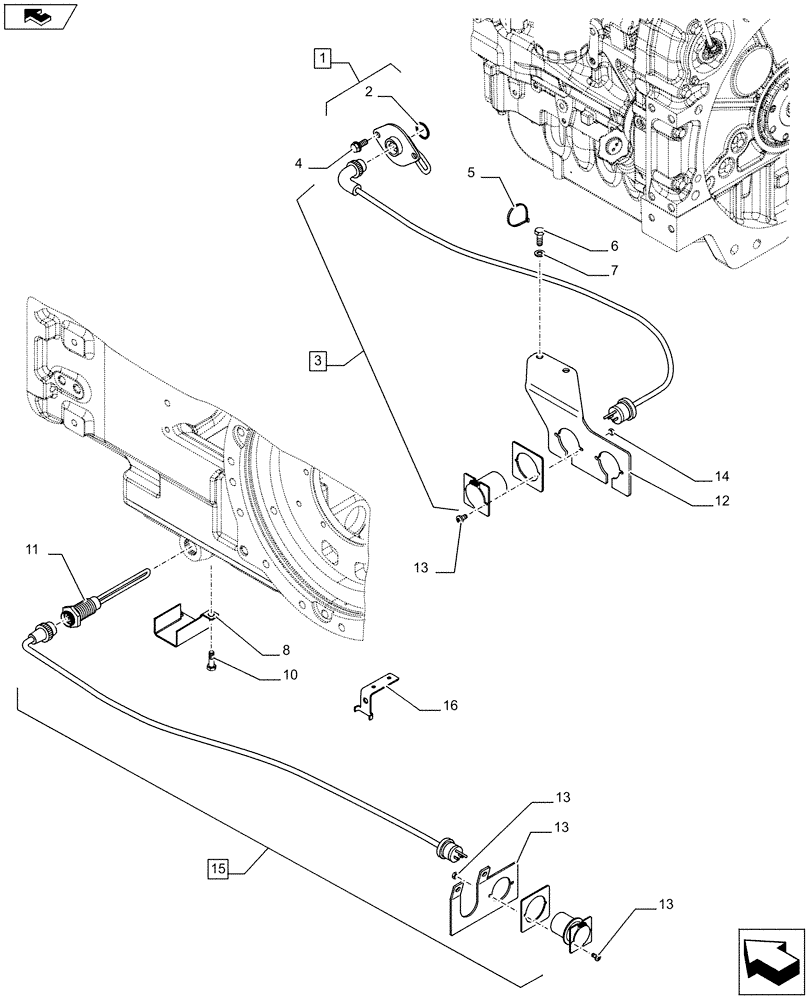

Схема запчастей Case IH PUMA 145 - (10.254.06[01A]) - VAR - 330205 - ENGINE BLOCK AND TRANSMISSION OIL HEATERS - 110V - D7114 (10) - ENGINE
13
13
1
13
15
10
5
16
home
14
2
12
13
7
8
3
11
6
4

Артикул

Название

Примечание

Количество

1

4891287

HEATER

Engine Block, 125V, ASSY, Incl 2

1шт.

2

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

1шт.

3

84397507

ELECTRIC CABLE

Engine Block Heater, ASSY

1шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

5

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

7

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

84278885

GUARD

1шт.

9

87315478

BRACKET

1шт.

10

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

11

84130678

HEATER,110V

Transmission Oil, 125V

1шт.

12

84305836

SUPPORT

1шт.

13

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

4шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

15

84397506

ELECTRIC CABLE,78mm L

Transmission Oil Heater, 125V, ASSY

1шт.

16

87633005

BRACKET

1шт.

Выбрано товаров: 16
