(90.116.07) - VAR - 330518, 330519, 743707, 743708 - WIDE REAR FENDERS - DEFLECTOR

Запчасти Case IH PUMA 145 (90.116.07) - VAR - 330518, 330519, 743707, 743708 - WIDE REAR FENDERS - DEFLECTOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

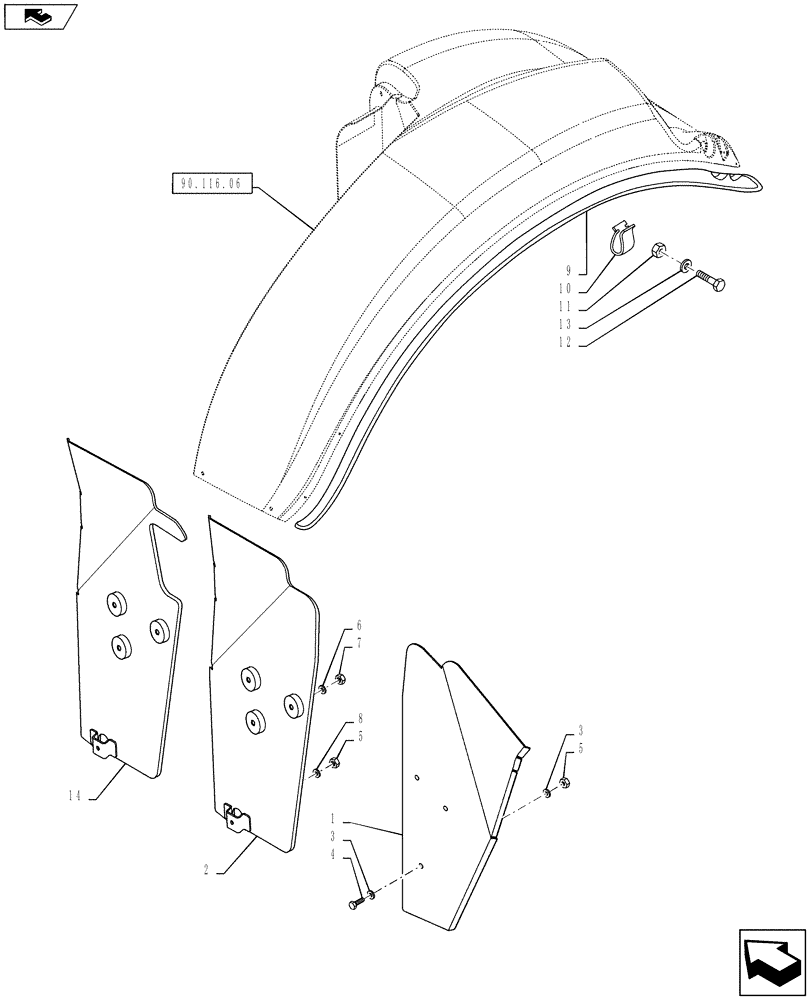

Схема запчастей Case IH PUMA 145 - (90.116.07) - VAR - 330518, 330519, 743707, 743708 - WIDE REAR FENDERS - DEFLECTOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
7
8
6
5
9
11
14
10
3
5
4
1
12
13
home
90.116.06
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84370541

GUARD

LH

1шт.

2

84367500

DEFLECTOR

RH, Serial Range: -ZBBN11302

1шт.

3

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

5

12574211

NUT,M6 x 1, Cl 8

4шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

14047317

NUT,M8 x 1.25

3шт.

8

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

9

87520691

FENDER EXTENSION

LH, With Extensions Only, VAR. 330519

1шт.

9

87520692

FENDER EXTENSION

RH, With Extensions Only, VAR. 330519

1шт.

10

87622826

SPRING CLIP,0.5mm Thk

With Extensions Only, VAR. 330519

8шт.

11

14188971

CLIP

With Extensions Only, VAR. 330519

2шт.

12

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

With Extensions Only, VAR. 330519

2шт.

13

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

With Extensions Only, VAR. 330519

2шт.

14

84417110

DEFLECTOR

RH, Start Serial: ZBBN11303

1шт.
