Запчасти Case IH PUMA 145 (55.785.05) - VAR - 743721, 331764, 332764, 332761, 743720, 337761 - BRACKET FOR MOUNTING EQUIPMENT MONITORS (55) - ELECTRICAL SYSTEMS

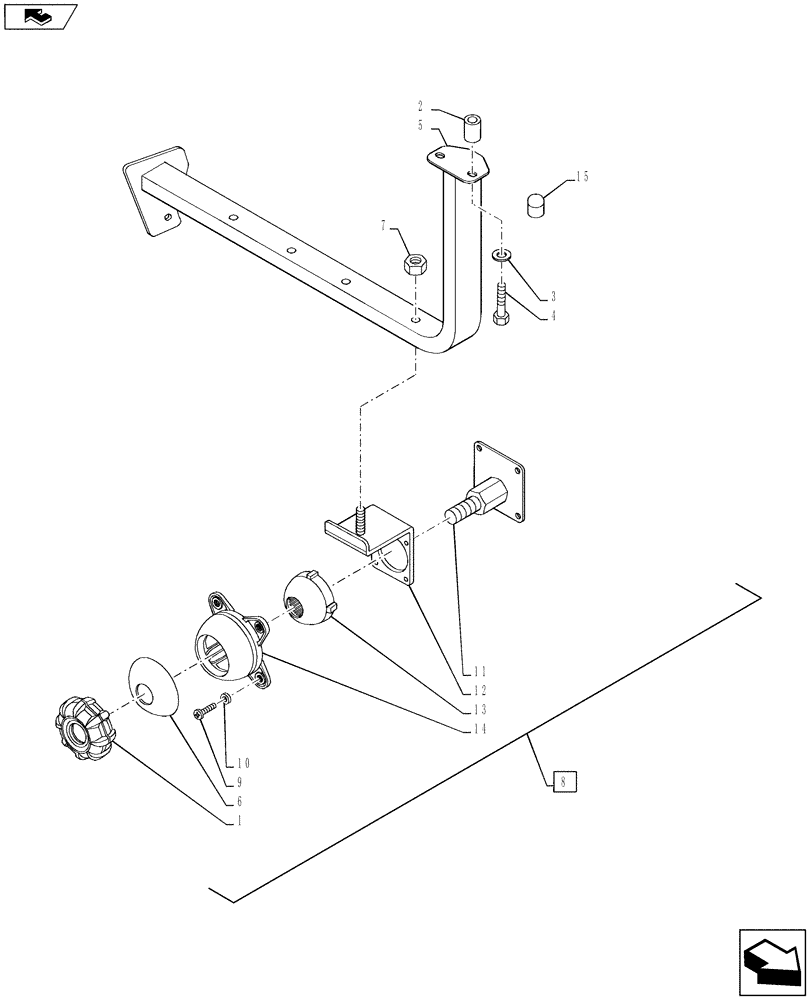

Схема запчастей Case IH PUMA 145 - (55.785.05) - VAR - 743721, 331764, 332764, 332761, 743720, 337761 - BRACKET FOR MOUNTING EQUIPMENT MONITORS (55) - ELECTRICAL SYSTEMS
2
14
15
10
3
9
1
8
12
4
11
7
home
6
13
5

Артикул

Название

Примечание

Количество

1

87316701

KNOB

1шт.

2

87681589

SPACER,8mm ID x 11mm OD x 16mm L

2шт.

3

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

10шт.

4

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

4

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

5

87553422

SUPPORT

Monitor

1шт.

6

87316706

CUP,23mm ID x 68.6mm OD, Black

1шт.

7

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

8

87614599

SUPPORT

Monitor, Incl 1, 6, 9 - 14

1шт.

9

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

11

87565605

SUPPORT

Monitor Mount

1шт.

12

87614600

BRACKET

1шт.

13

87614603

CUP,Black

1шт.

14

87614602

BASE

1шт.

15

5132136

CAP COVER,M8

2шт.

Выбрано товаров: 16
