(55.785.02) - VAR - 743719, 331761, 336761, 743721, 331764, 332764 - VIRTUAL TERMINAL (AFS PRO 300) AND REAR ISOBUS - CONTROL DISPLAY

Запчасти Case IH PUMA 145 (55.785.02) - VAR - 743719, 331761, 336761, 743721, 331764, 332764 - VIRTUAL TERMINAL (AFS PRO 300) AND REAR ISOBUS - CONTROL DISPLAY (55) - ELECTRICAL SYSTEMS

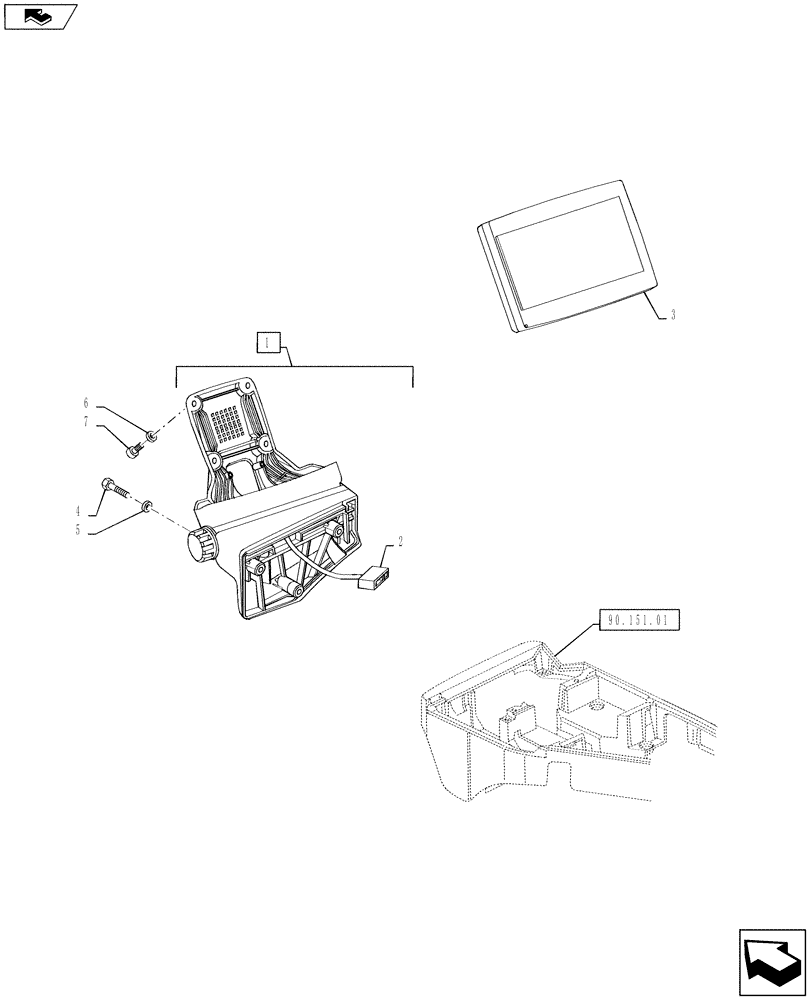

Схема запчастей Case IH PUMA 145 - (55.785.02) - VAR - 743719, 331761, 336761, 743721, 331764, 332764 - VIRTUAL TERMINAL (AFS PRO 300) AND REAR ISOBUS - CONTROL DISPLAY (55) - ELECTRICAL SYSTEMS
home
2
6
5
1
3
7
4
90.151.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87725500

HOLDER

Hinge and Harness, Incl 2

1шт.

2

84228344

HARNESS

1шт.

3

84296834

CONTROL MONITOR

1шт.

3

84410268

CONTROL MONITOR

, Serial Range: -C7136

1шт.

84486874R

REMAN-ELECT MONITOR

PUMA 130, PUMA 145, PUMA 160, All TRACTOR - CVT (12/10-), Reman for New PN 84410268

1шт.

84486874C

CORE-MONITOR

Return Number

1шт.

3

84481933

CONTROL MONITOR

, Start Serial: D7136

1шт.

3

84481933R

REMAN-ELECT MONITOR

Reman for New PN 84481933

1шт.

3

84481933C

CORE-MONITOR

Return Number

1шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

5

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

6

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

4шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.
