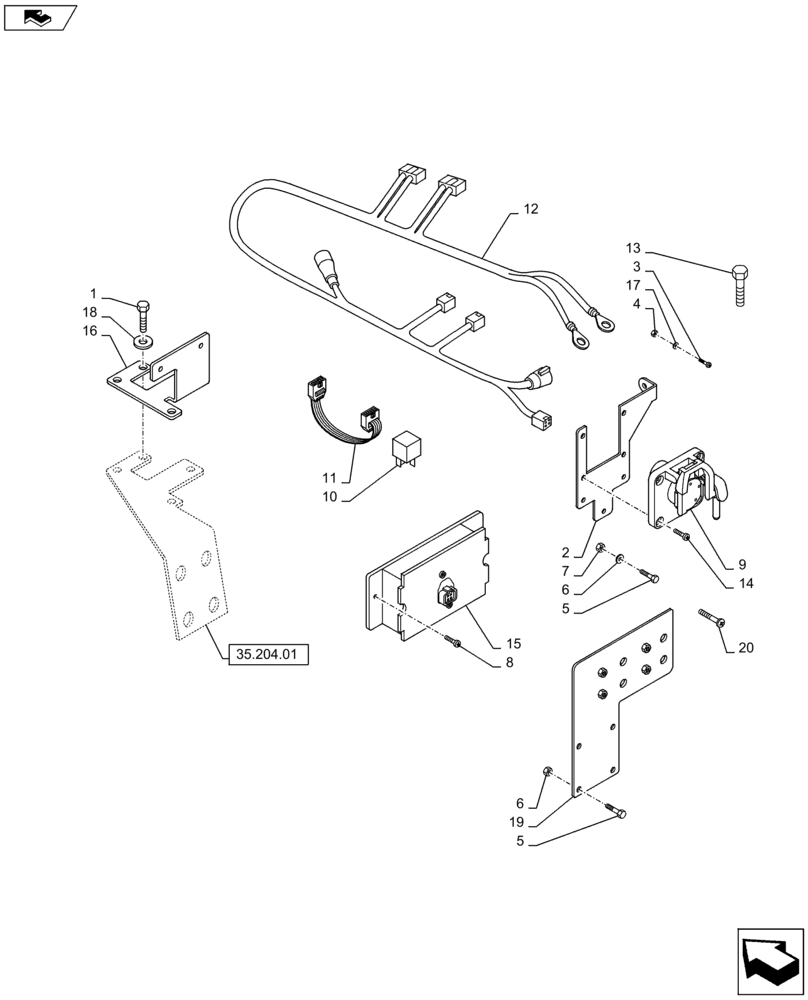

Запчасти Case IH PUMA 145 (55.785.01) - VAR - 743722, 330079, 334761, 743719, 331761, 336761, 331764, 743720, 332764, 332761, 337761 - VIRTUAL TERMINAL (AFS PRO 300) AND TOUCHSCREEN (AFS PRO 600) WITH REAR ISOBUS - ISOBUS MOUNTING (55) - ELECTRICAL SYSTEM

1

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

2

87598402

BRACKET

1шт.

3

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

2шт.

4

10794011

NUT,M4, Cl 8

2шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

5шт.

6

10571579

LOCK WASHER,M6

5шт.

7

15896211

NUT,M6, Cl 8

5шт.

8

15645501

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 16mm

2шт.

9

87522416

ELEC CONNECTOR,Female, 5 Cavities

Isobus Breakaway

1шт.

10

82017871

RELAY,12V, 20A

2шт.

11

87638191

WIRE HARNESS

Link Lead

1шт.

12

84250780

WIRE HARNESS

Isobus Power

1шт.

13

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

14

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

4шт.

15

82038683

ELEC. TERMINAL PIN

1шт.

16

87499716

SUPPORT

1шт.

17

14497731

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

2шт.

18

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

19

84268760

SUPPORT

Isobus Power Fuses

1шт.

20

84346912

SCREW,Torx, Pan HD, M4 x 55mm, Cl 4.8

2шт.
