(55.510.08) - VAR - 332821, 334821 - LOADER READY - FRONT LOADER HARNESS

Запчасти Case IH PUMA 145 (55.510.08) - VAR - 332821, 334821 - LOADER READY - FRONT LOADER HARNESS (55) - ELECTRICAL SYSTEMS

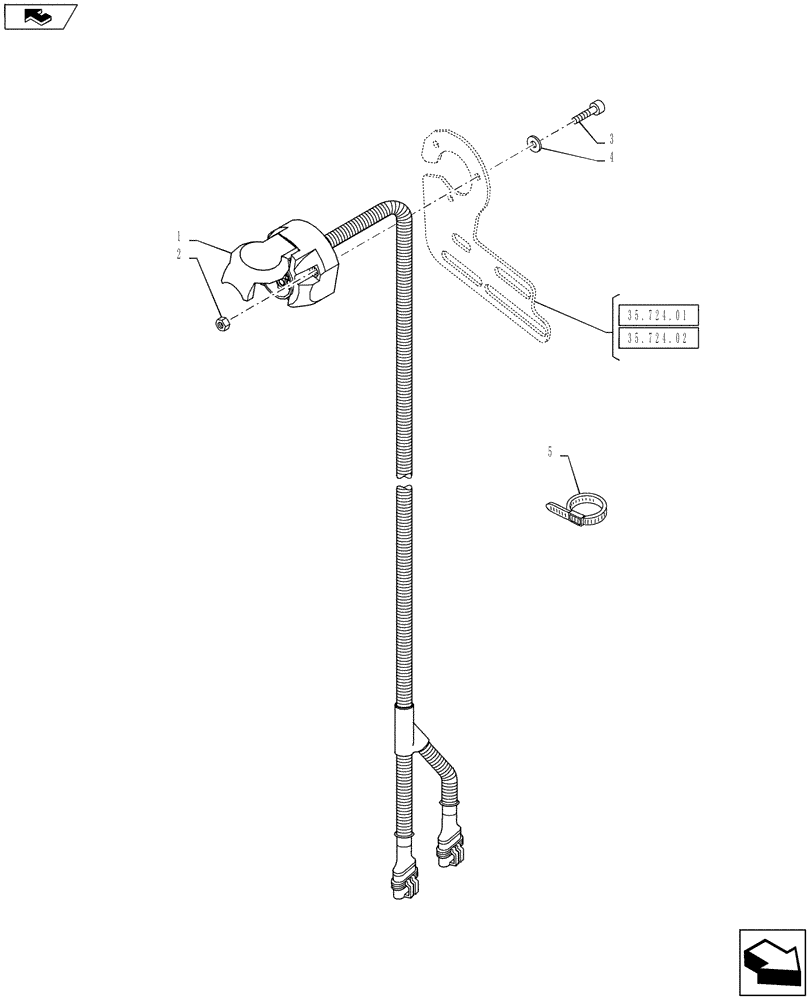

Схема запчастей Case IH PUMA 145 - (55.510.08) - VAR - 332821, 334821 - LOADER READY - FRONT LOADER HARNESS (55) - ELECTRICAL SYSTEMS
1
home
35.724.02
35.724.01
5
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87742281

WIRE HARNESS

Front Loader, 7 Pin

1шт.

2

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

3шт.

3

1190772

SCREW,Hex Soc Hd, M5 x 35mm, Cl 8.8

3шт.

4

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

3шт.

5

82012869

CABLE TIE,300mm L, Nylon, Black

CABLE STRAP

5шт.
