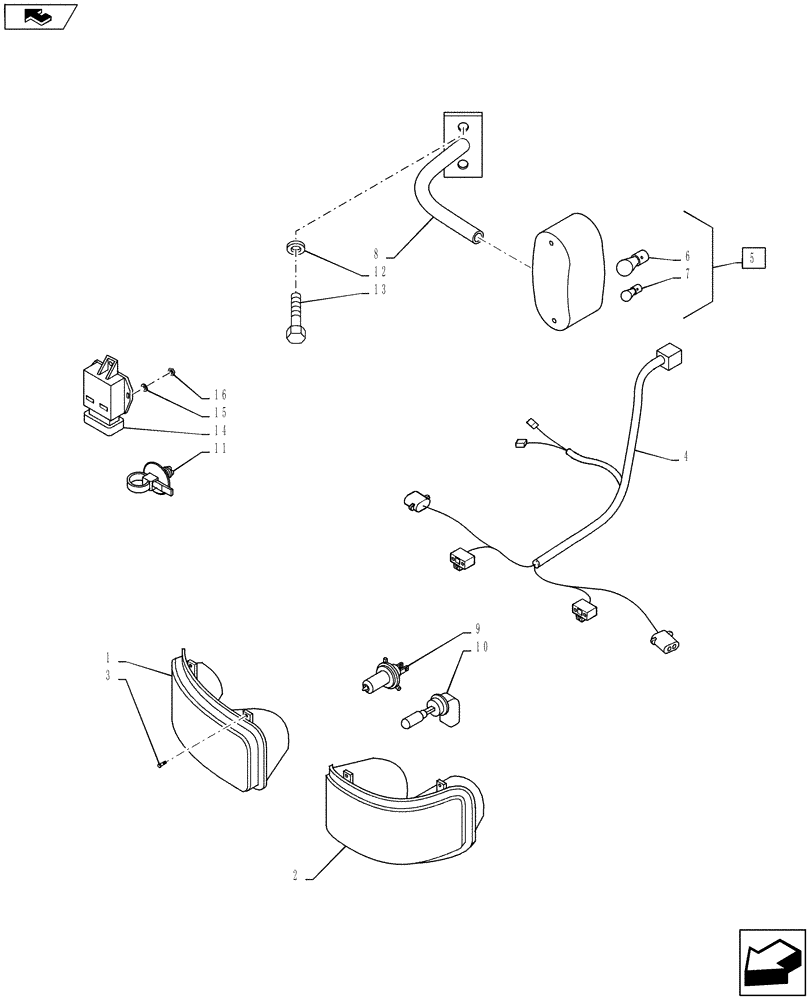

Запчасти Case IH PUMA 145 (55.404.01) - VAR - 743726, 330007, 335007, 330698, 390698 - FRONT HEADLAMPS (55) - ELECTRICAL SYSTEMS

1

87602451

RH HEADLAMP,Halogen, 12V, 60W, Clear

RH Dip, VAR 390698, Incl 9, 10

1шт.

1

87602449

RH HEADLAMP,H4, Halogen, 12V, 55/60W, Transparent

LH Dip, VAR 330698, Incl 9, 10

1шт.

2

87602450

LH HEADLAMP,Halogen, 12V, 60W, Clear

RH Dip, VAR 390698, Incl 9, 10

1шт.

2

87602448

LH HEADLAMP,H4, Halogen, 12V, 55/60W, Transparent

LH Dip, VAR 330698, Incl 9, 10

1шт.

3

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

8шт.

4

87704780

WIRE HARNESS

1шт.

5

87304547

SIDE LAMP ASSY,12V, 21W

RH, Turn, SMV, CVX Models Only, Incl 6, 7

1шт.

5

87304549

SIDE LAMP ASSY,12V, 21W

LH, Turn, SMV, CVX Models Only, Incl 6, 7

1шт.

6

14148090

BULB,PY21W, 12V, 21W

12V-21W, CVX Models Only

1шт.

7

10857790

BULB,R10W, 12V, 5W

CVX Models Only

1шт.

8

82037611

SUPPORT

RH, CVX Models Only

1шт.

8

82037613

SUPPORT

LH, CVX Models Only

1шт.

9

87283179

BULB,H4, 12V, 60/55W

H4, 12V-55/60W

2шт.

10

139119A1

BULB,#886, 12V, 50W

7шт.

11

82033028

CABLE TIE,170mm L

7шт.

12

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

13

84188431

SCREW,Pan HD, M8 x 25mm, Cl 8.8

4шт.

14

87577636

FLASHER UNIT

CVX Models Only

1шт.

14

82038684

FLASHER UNIT

CVT Models only, VAR 330007, 743726, 335007

1шт.

15

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

16

15896211

NUT,M6, Cl 8

2шт.
