Запчасти Case IH PUMA 145 (10.105.02) - CONNECTING ROD (10) - ENGINE

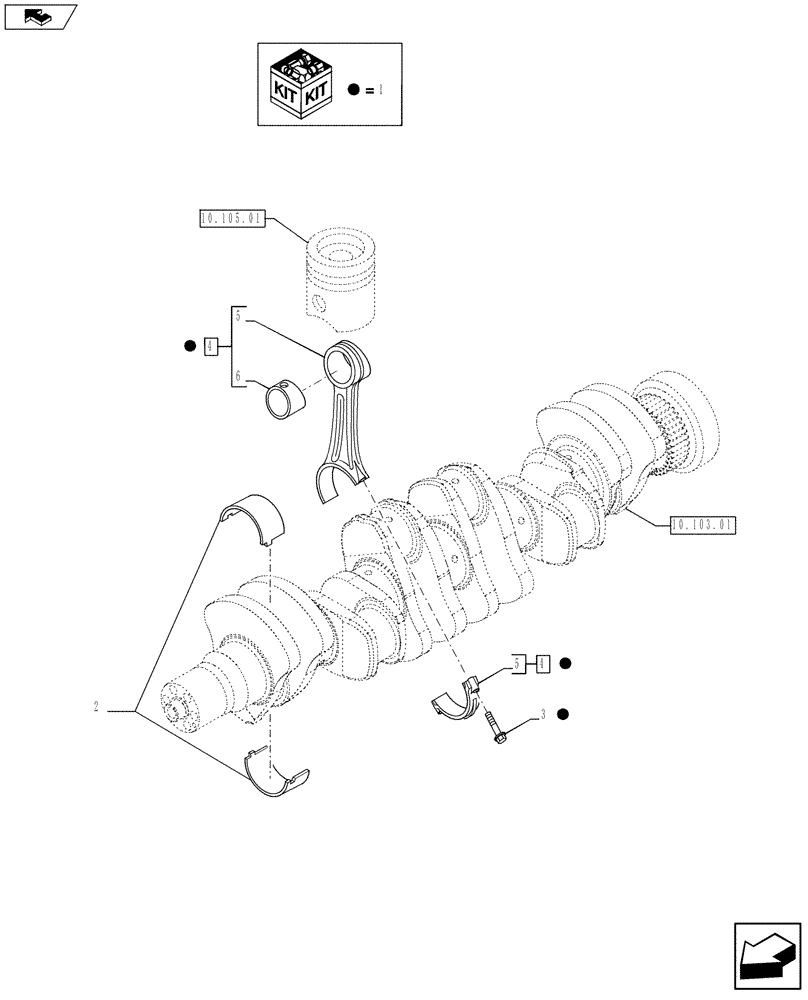

Схема запчастей Case IH PUMA 145 - (10.105.02) - CONNECTING ROD (10) - ENGINE
2
10.105.01
1
3
5
1
10.103.01
4
home
5
1
4
6
1
1

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

Incl 3, 4

6шт.

2831298R

REMAN-CONNECTING ROD

PUMA 130 , PUMA 145 , PUMA 160 all are in ( 1/11 - )

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

2856309

CRANKSHAFT BEARING

6шт.

2

4892715

BEARING LINER

6шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

4895747

CONNECTING ROD

Incl 5, 6

1шт.

2831298R

REMAN-CONNECTING ROD

PUMA 160 , PUMA 145 , PUMA 130 ( 1/11 - ) Reman For New P/N 4895747

1шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Incl in 4

1шт.

6

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

Выбрано товаров: 11
