(50.200.02[01B]) - AIR CONDITIONING - LINES - RECEIVER-DRYER - D7381

Запчасти Case IH PUMA 145 (50.200.02[01B]) - AIR CONDITIONING - LINES - RECEIVER-DRYER - D7381 (50) - CAB CLIMATE CONTROL

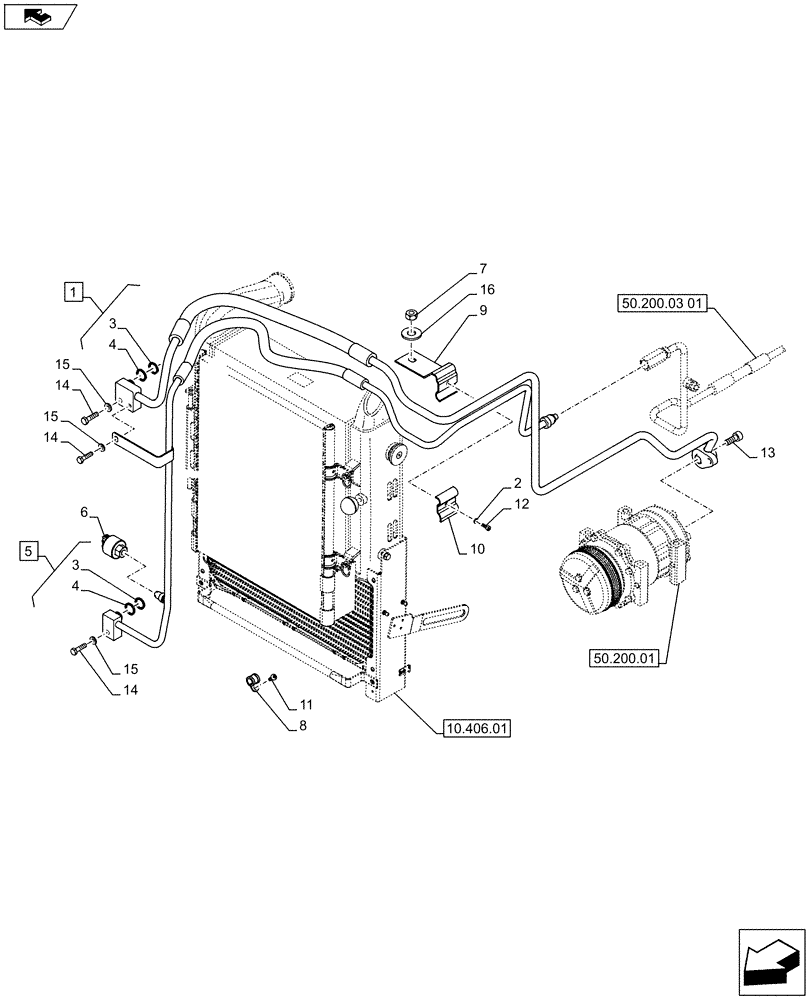

Схема запчастей Case IH PUMA 145 - (50.200.02[01B]) - AIR CONDITIONING - LINES - RECEIVER-DRYER - D7381 (50) - CAB CLIMATE CONTROL
50.200.03 01
4
1
15
4
15
15
1
12
1
14
6
5
3
8
2
7
14
10
9
3
13
16
14
home
10.406.01
50.200.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47485910

HYD TUBE

ASSY, Incl 3, 4

1шт.

2

10615279

LOCK WASHER,M4, Serr

1шт.

3

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

5

47485909

PIPE

ASSY, Incl 3, 4

1шт.

6

84233818

PRESSURE SWITCH

Switch A/C High Pressure

1шт.

7

16100814

NUT,M8, Cl 8, DAC

1шт.

8

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

9

84171945

BRACKET

1шт.

10

87653304

BRACKET

1шт.

11

87015756

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

1шт.

12

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

13

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

1шт.

14

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

15

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

16

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.
