(50.104.01) - VAR - 390643, 330643 - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS

Запчасти Case IH PUMA 145 (50.104.01) - VAR - 390643, 330643 - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (50) - CAB CLIMATE CONTROL

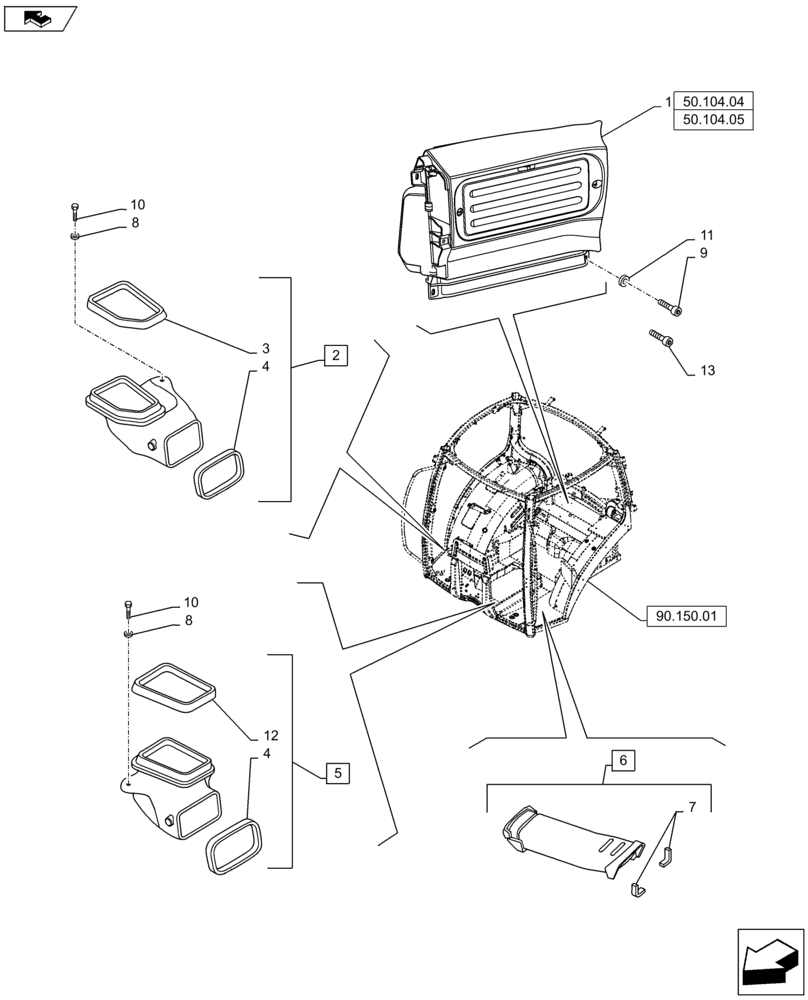

Схема запчастей Case IH PUMA 145 - (50.104.01) - VAR - 390643, 330643 - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (50) - CAB CLIMATE CONTROL
8
3
8
10
90.150.01
7
4
home
9
12
13
50.104.04
1
1
5
10
6
2
4
1
50.104.05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87651396

BLOWER,12V

1шт.

1

87651397

BLOWER

w/ATC, VAR 330643

1шт.

2

87518106

DUCT

RH, Incl 3, 4

1шт.

3

87523583

SEAL

1шт.

4

87523573

SEAL

2шт.

5

87390278

DUCT

LH, Incl 4, 12

1шт.

6

87301550

DUCT

LH, Incl 7

1шт.

6

87301551

DUCT

RH, Incl 7

1шт.

7

82033009

SEAL

4шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

9

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

, Years: -19-JAN-12, Serial Range: -C7254

2шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

11

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

12

87523726

SEAL

1шт.

13

13276617

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 5.8, Full Thd

, Start Year: 20-JAN-12, Start Serial: D7254

2шт.
