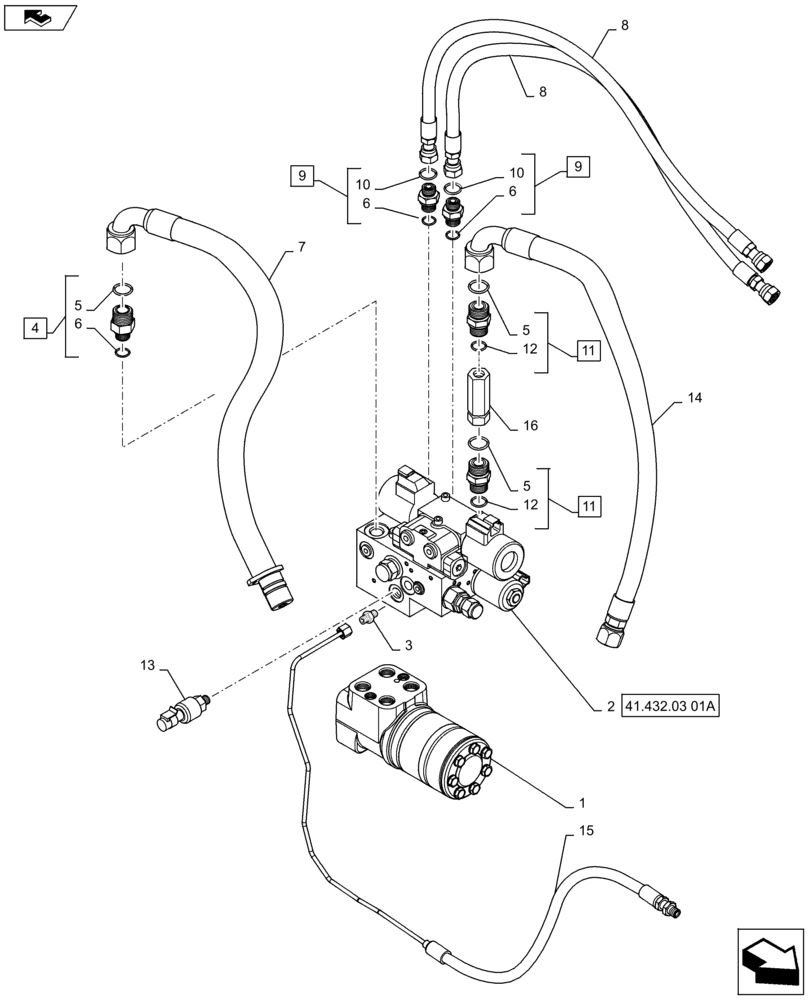

Запчасти Case IH PUMA 145 (41.432.01[01A]) - VAR - 330077, 331077 - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES - PUMA 130 & 145 - D9026 (41) - STEERING

1

84261626

STEERING VALVE

1шт.

2

84166215

VALVE SECTION

1шт.

3

76076087

FITTING,M12 x 1.5 ORB x 9/16"-18 ORFS

1шт.

4

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

ASSY, Incl 5, 6

1шт.

5

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

7

84125657

HOSE

1шт.

8

82037164

HOSE,9.53mm ID x 685mm L, SAE 100R2

2шт.

9

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

ASSY, Incl 6, 10

1шт.

10

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 5, 12

2шт.

12

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

13

87428328

PRESSURE SWITCH

1шт.

14

84125637

HOSE

1шт.

15

84378852

HYD TUBE

1шт.

16

87350633

FILTER

1шт.
