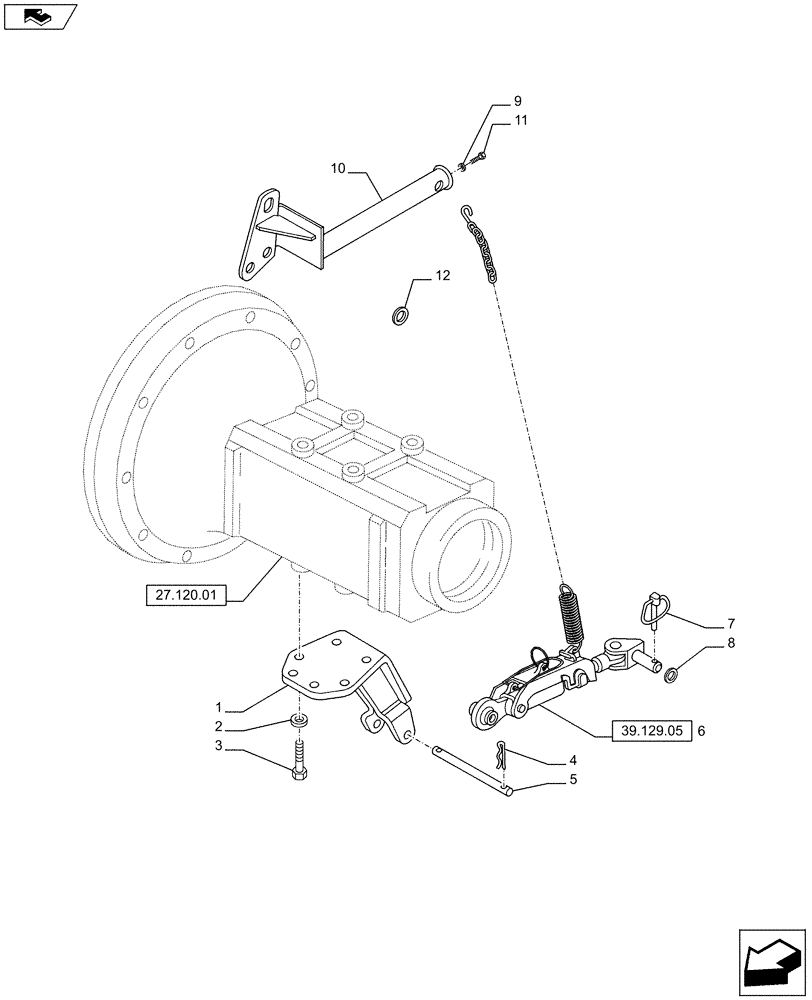

Запчасти Case IH PUMA 145 (39.129.03) - VAR - 330949, 331949, 332949, 334949, 743697 - AUTOMATIC LINKAGE STABILIZER - PUMA 130 & 145 (39) - FRAMES AND BALLASTING

1

5154775

SUPPORT

2шт.

2

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

3

15984321

BOLT,Hex, M18 x 1.5 x 50mm, Cl 8.8

8шт.

4

10798404

COTTER PIN,6.3mm Dia x 40.00mm, DAC

4шт.

5

5125861

PIN,19mm OD x 105mm L

2шт.

6

87391930

STABILIZER

2шт.

7

47125579

LINCH PIN,11.5mm OD

ROLL PIN

2шт.

8

562106

WASHER,25.50mm ID x 45.00mm OD

2шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

Auto Stabilizer (less Wheel Chocks), VAR. 330949

2шт.

10

87709207

SUPPORT

LH, Auto Stabilizer (less Wheel Chocks), VAR. 330949

1шт.

10

87709208

SUPPORT

RH, Auto Stabilizer (less Wheel Chocks), VAR. 330949

1шт.

11

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

Auto Stabilizer (less Wheel Chocks), VAR. 330949

2шт.

12

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

1шт.

Auto Stabilizer (f/with air brakes), VAR.332949

1шт.
