(35.204.28) - QUICK COUPLER - 4 & 5 VALVE

Запчасти Case IH PUMA 145 (35.204.28) - QUICK COUPLER - 4 & 5 VALVE (35) - HYDRAULIC SYSTEMS

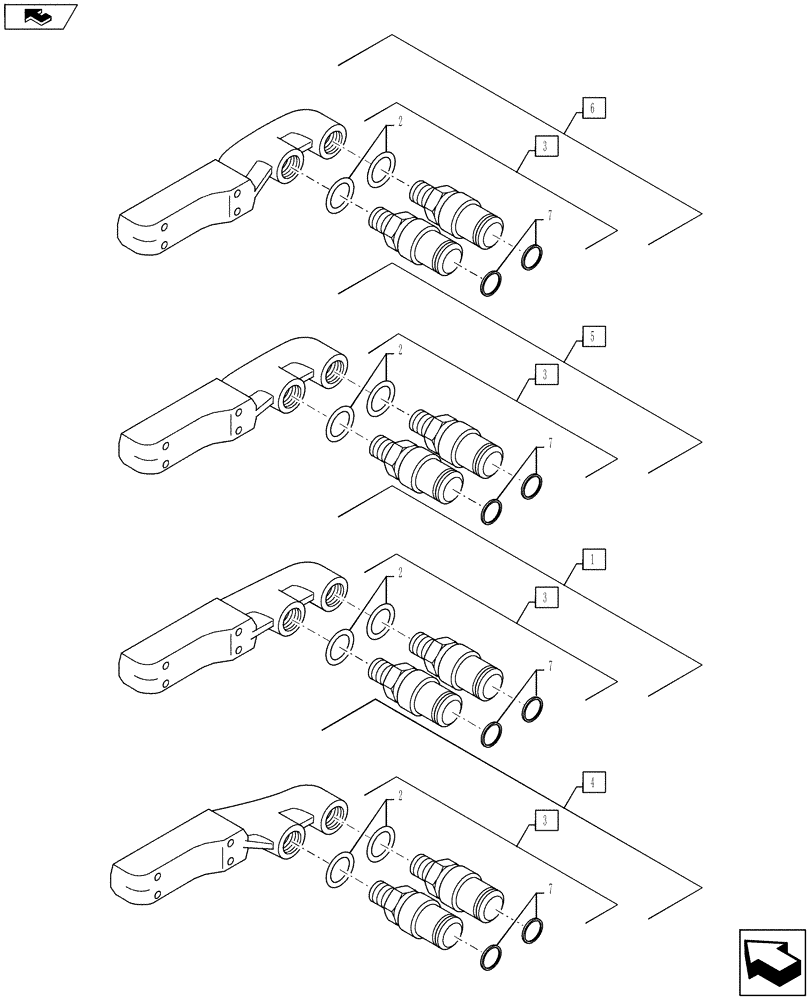

Схема запчастей Case IH PUMA 145 - (35.204.28) - QUICK COUPLER - 4 & 5 VALVE (35) - HYDRAULIC SYSTEMS
7
7
2
2
3
4
2
1
5
3
7
2
7
home
6
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87381963

QUICK MALE COUPLING

Incl 2, 3, 7

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

8шт.

3

87381944

COUPLING, QUICK, FEM

Incl 2, 7

8шт.

4

87381958

QUICK MALE COUPLING

Incl 2, 3, 7

1шт.

5

87381964

QUICK MALE COUPLING

Incl 2, 3, 7

1шт.

6

87381965

QUICK MALE COUPLING

Qty 2 used for 5 Valve. Incl 2, 3, 7

1шт.

7

87382012

SEAL KIT

Incl O-Ring & Backup Washer

8шт.
