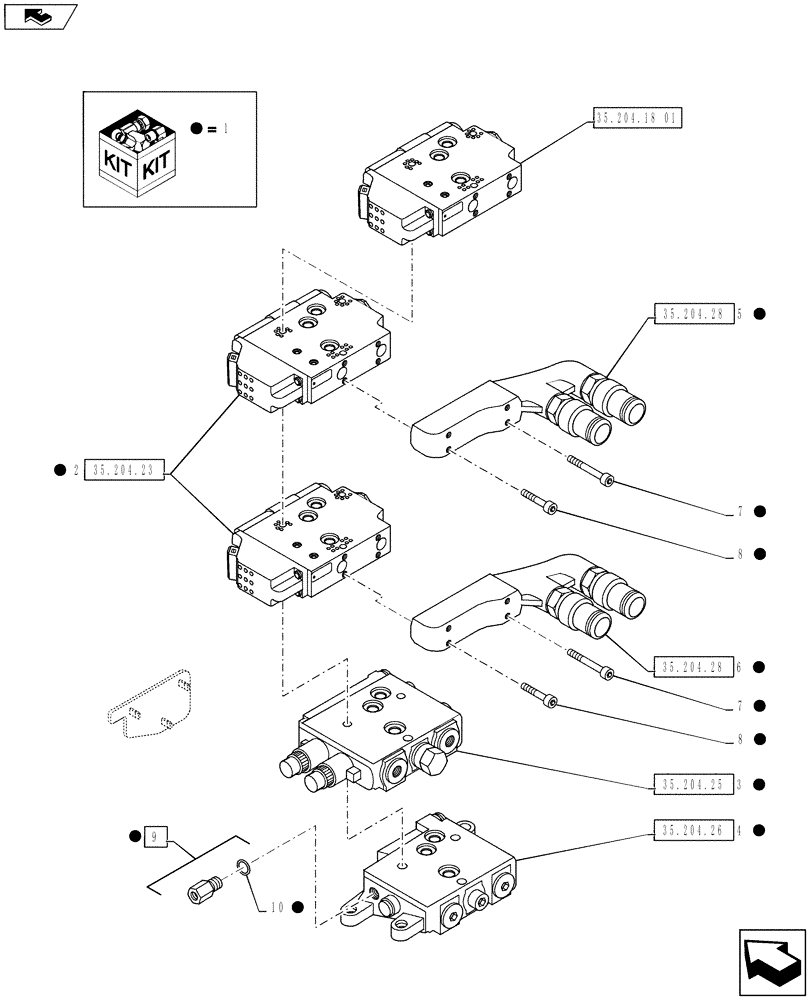

Запчасти Case IH PUMA 145 (35.204.18[02]) - VAR - 331553, 331875 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 5 VALVE (35) - HYDRAULIC SYSTEMS

1

84230143

CONTROL VALVE

Incl 2 - 10 and Figure 35.204.18 (01)

1шт.

2

84230181

HYD VALVE SECTION

2шт.

3

84175671

VALVE SECTION

1шт.

84175671R

REMAN-HYD VALVE

PUMA 130 CVT, PUMA 145 CVT, PUMA 160 CVT all (12/10-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

84142195

HYD VALVE SECTION

1шт.

5

87381963

QUICK MALE COUPLING

1шт.

6

87381958

QUICK MALE COUPLING

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

2шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

2шт.

9

5191704

CHECK VALVE

Incl 10

1шт.

10

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
