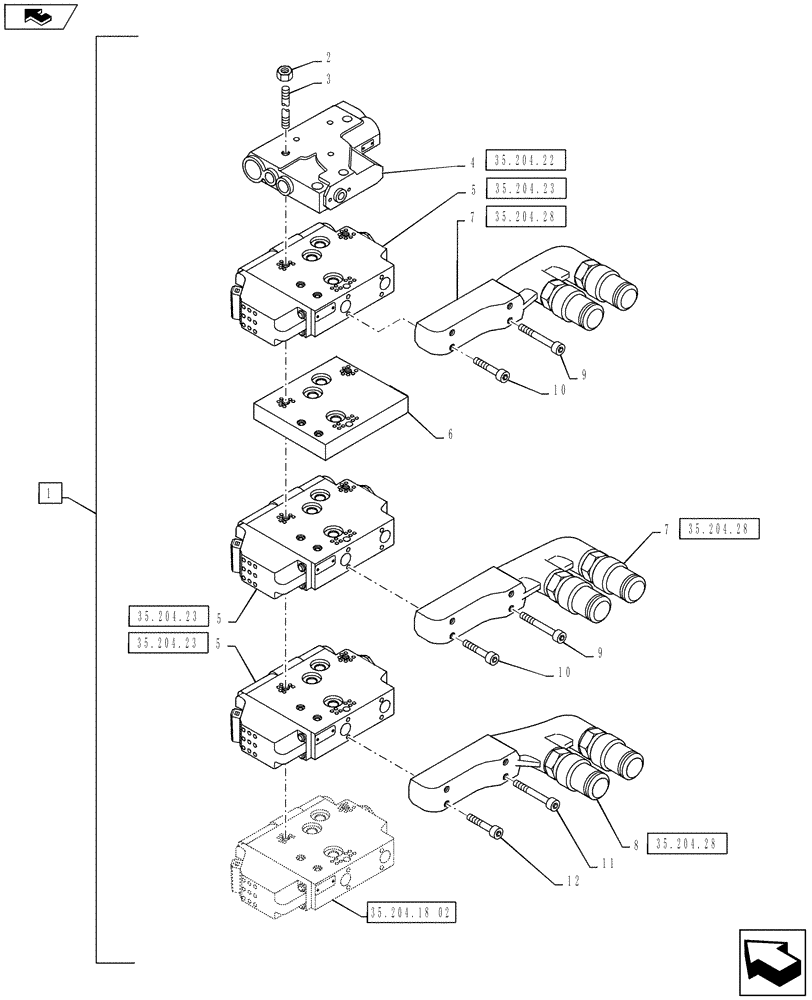

Запчасти Case IH PUMA 145 (35.204.18[01]) - VAR - 331553, 331875 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 5 VALVE (35) - HYDRAULIC SYSTEMS

1

84230143

CONTROL VALVE

Incl 2 - 12 and parts on Figure 35.204.18 (02)

1шт.

2

5195169

NUT,M8

3шт.

3

84151302

TRUSS ROD,331mm L

3шт.

4

84230200

HYD VALVE SECTION

1шт.

5

84230181

HYD VALVE SECTION

3шт.

84230181R

REMAN-HYD VALVE

PUMA 130 CVX, PUMA 145 CVT, PUMA 160 CVT all (12/10-)

3шт.

84230181C

CORE-VALVE HYD

Return Number

1шт.

6

84146808

PLATE

1шт.

7

87381965

QUICK MALE COUPLING

2шт.

8

87381964

QUICK MALE COUPLING

1шт.

9

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

10

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

1шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

1шт.
