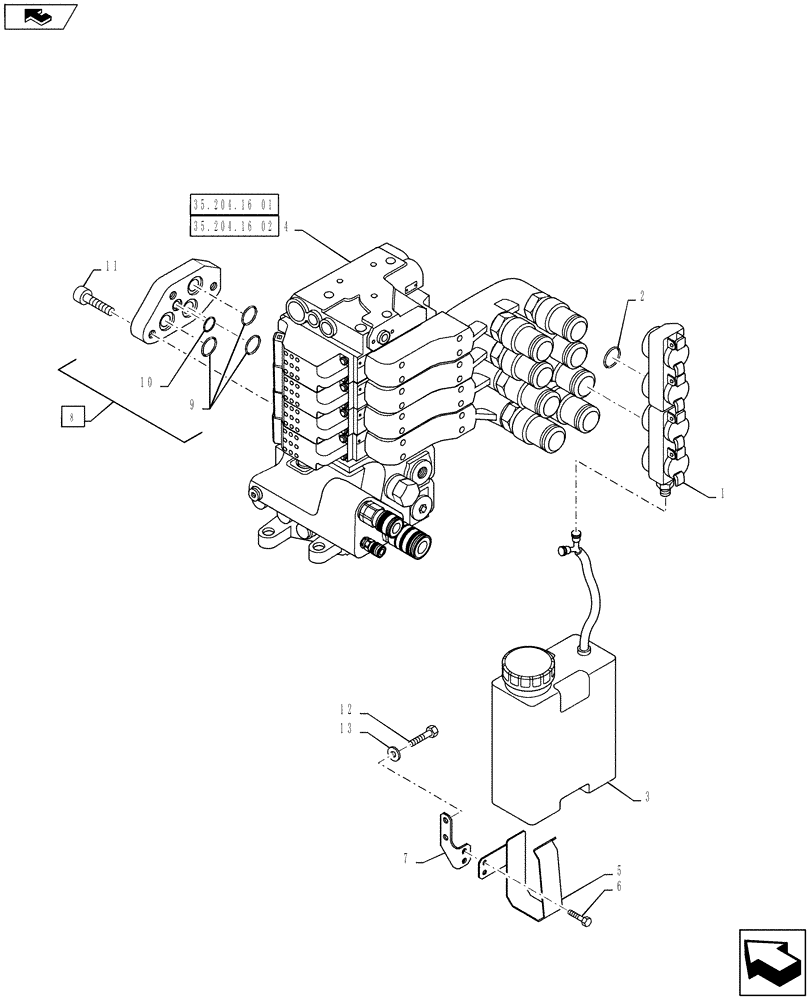

Запчасти Case IH PUMA 145 (35.204.15) - VAR - 743733, 332862, 332855 - EHR CONTROL VALVE - MOUNTING & ATTACHMENTS - 4 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

1

84293792

DUST CAP

Quadruple, VAR. 332862

2шт.

1

84290177

DUST CAP

Triple, VAR. 332855 (Not Shown)

2шт.

2

14454580

O-RING,34.65mm ID x 1.78mm

4шт.

3

84284864

RESERVOIR, HYDRAULIC

1шт.

4

84230146

CONTROL VALVE

1шт.

5

84312030

SUPPORT

1шт.

6

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

7

84311423

SUPPORT

1шт.

8

5199101

COVER

Incl 9, 10

1шт.

9

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

10

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

11

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

12

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
