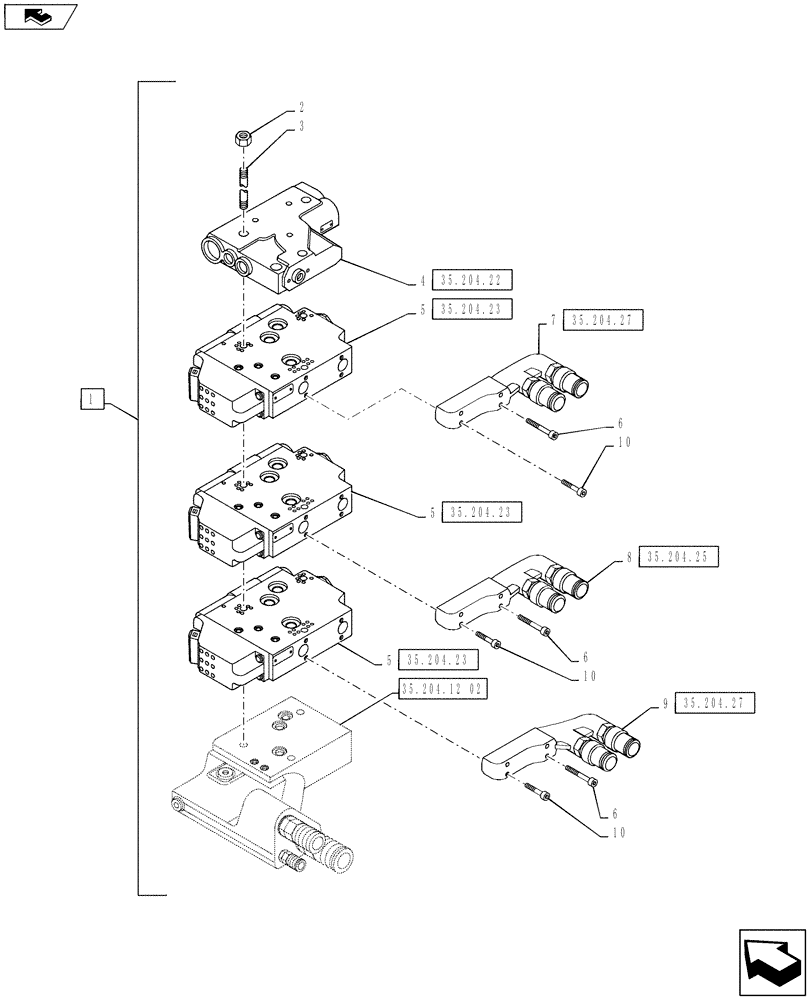

Запчасти Case IH PUMA 145 (35.204.12[01]) - VAR - 331856 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 3 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

1

84230147

CONTROL VALVE

Incl 2 - 10 and Figure 35.204.12 [02]

1шт.

2

5195169

NUT,M8

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

84230200

HYD VALVE SECTION

1шт.

5

84230181

HYD VALVE SECTION

3шт.

84230181R

REMAN-HYD VALVE

PUMA 130 CVX, PUMA 145 CVT, PUMA 160 CVT all (12/10-)

3шт.

84230181C

CORE-VALVE HYD

Return Number

1шт.

6

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

47129474

HEX SOC SCREW,M6 x 35mm

6шт.
