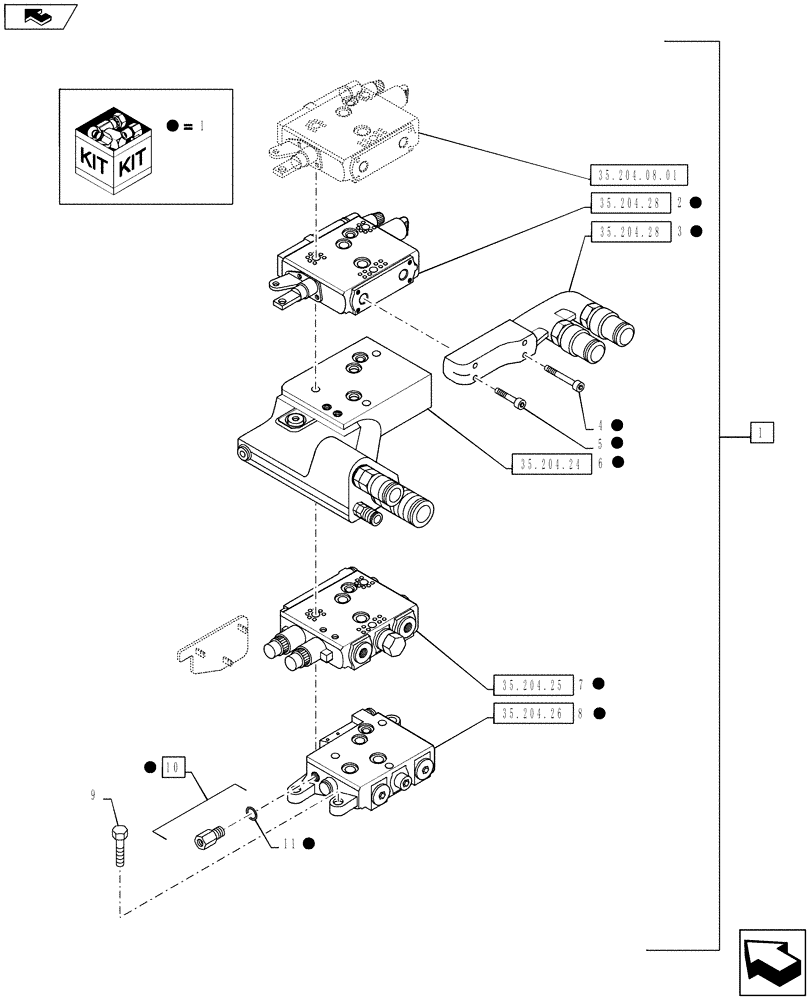

Запчасти Case IH PUMA 145 (35.204.08[02]) - VAR - 336845 - MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

1

84146796

CONTROL VALVE

Incl 2 - 8, 10, 11 and Figure 35.204.08 (01)

1шт.

2

87328572

HYD VALVE SECTION

1шт.

3

87381958

QUICK MALE COUPLING

1шт.

4

47129475

HEX SOC SCREW,M6 x 50mm

2шт.

5

47129474

HEX SOC SCREW,M6 x 35mm

2шт.

6

84146807

HYD VALVE SECTION

1шт.

7

84175671

VALVE SECTION

1шт.

84175671R

REMAN-HYD VALVE

PUMA 130 CVT, PUMA 145 CVT, PUMA 160 CVT all (12/10-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

8

84142195

HYD VALVE SECTION

1шт.

9

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

10

5191704

CHECK VALVE

Incl 11

1шт.

11

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
