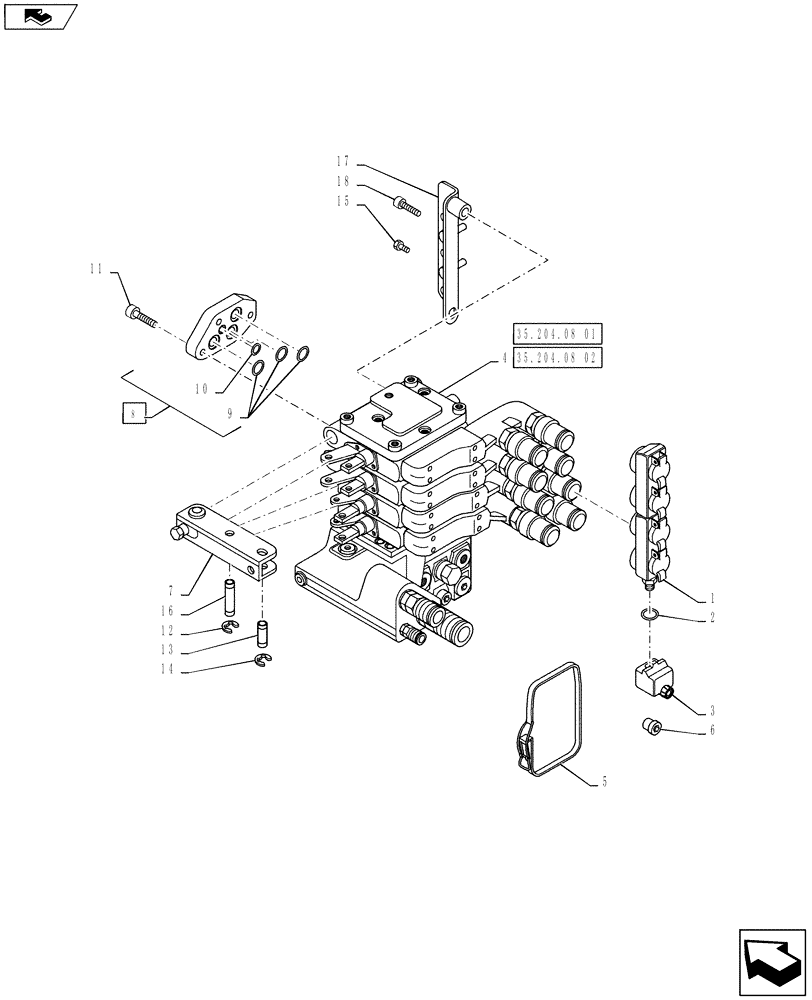

Запчасти Case IH PUMA 145 (35.204.07[01]) - VAR - 336845 - MECHANICAL REAR REMOTE CONTROL VALVES - MOUNTING & ATTACHMENTS - 4 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

1

87368376

DUST CAP

2шт.

2

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

3

84161329

BOTTLE

Assy, Oil Collection System

1шт.

4

84146796

CONTROL VALVE

1шт.

5

82031973

SPRING CLIP

1шт.

6

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

7

87358094

LEVER

4шт.

8

5199101

COVER

Incl 9, 10

1шт.

9

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

10

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

11

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

12

11063971

SPRING CLIP,M6

8шт.

13

5113008

PIN,8mm OD x 26mm L

4шт.

14

11065676

SNAP RING,M8, Ext

8шт.

15

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

16

5193177

PIN,6mm OD x 29.48mm L

4шт.

17

87358965

STOP

1шт.

18

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.
