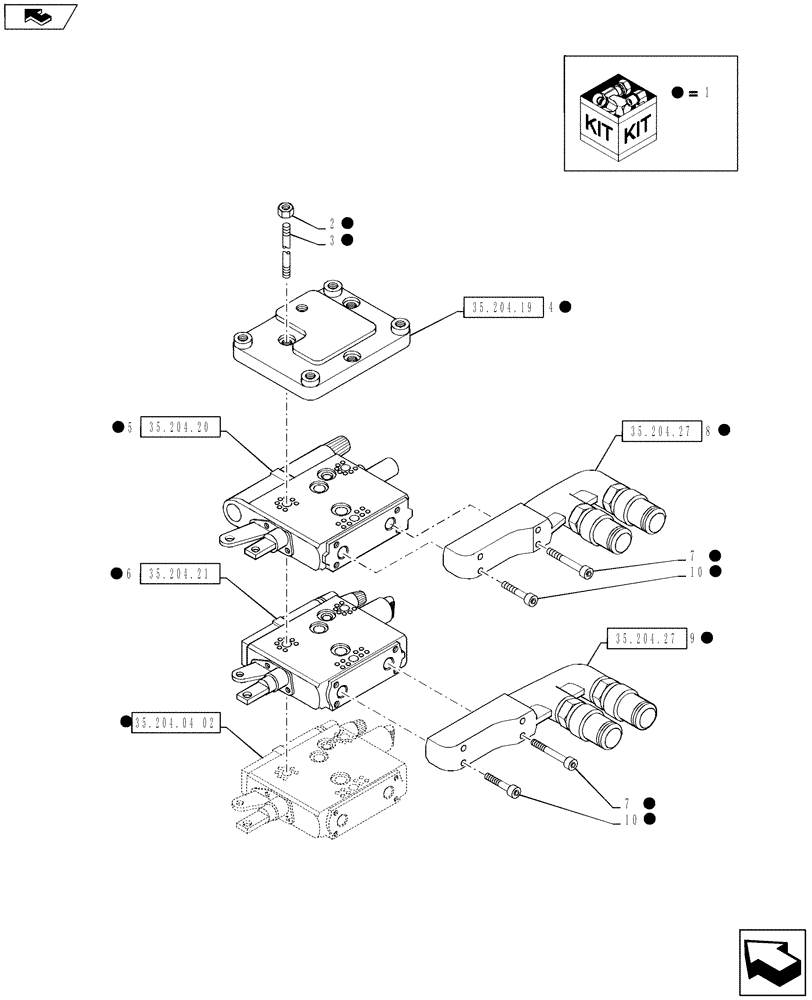

Запчасти Case IH PUMA 145 (35.204.04[01]) - VAR - 335844 - MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS & QUICK COUPLERS - 3 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

1

84146795

CONTROL VALVE

Incl 2 - 10 & 2 - 8, 10 & 11 on fig 35.204.04 (02)

1шт.

2

5195169

NUT,M8

3шт.

3

47129476

THREADED TIE-ROD,M8

ROD

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

1шт.

5

87546169R

REMAN-HYD VALVE

1шт.

5

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

87328572

HYD VALVE SECTION

1шт.

6

87328572R

REMAN-HYD VALVE

1шт.

6

87328572C

CORE-VALVE HYD

Return Number

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

87381964

QUICK MALE COUPLING

1шт.

9

87381963

QUICK MALE COUPLING

1шт.

10

47129474

HEX SOC SCREW,M6 x 35mm

4шт.
