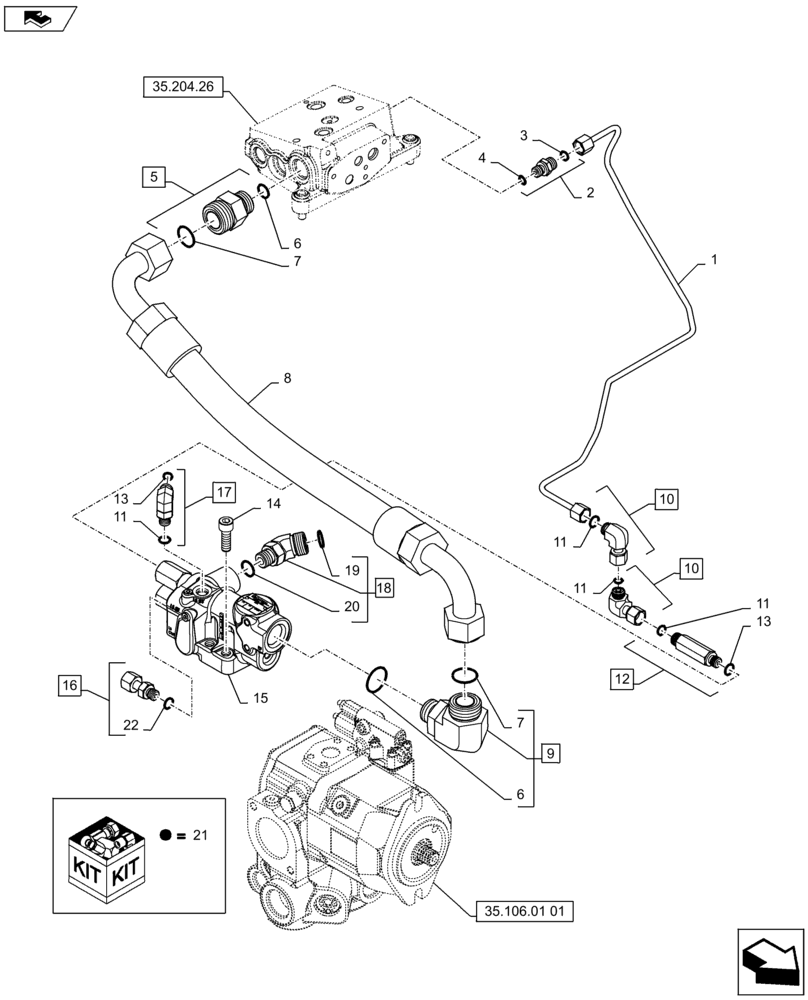

Запчасти Case IH PUMA 145 (35.200.01[01A]) - HYDRAULIC SYSTEM - PRIORITY VALVE, PUMP DELIVERY HOSE, & LOAD SENSING TUBE - D7113 (35) - HYDRAULIC SYSTEMS

1

84350277

HYD TUBE,6.00mm OD

Load Sensing

1шт.

2

5185045

HYD CONNECTOR

Incl 3, 4, Serial Range: -C7286

1шт.

2

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

Incl 3, 4, Start Serial: D7286

1шт.

3

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

, Serial Range: -C7286

1шт.

3

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

, Start Serial: D7286

1шт.

4

14437685

O-RING,9.30mm ID x 2.40mm

, Serial Range: -C7286

1шт.

4

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

, Start Serial: D7286

1шт.

5

84405439

HYD CONNECTOR,1" 7/16 - 12 - M27 x 2

Incl 6, 7

1шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

8

84344954

HOSE,25.40mm ID x 635.00mm, SAE 100R12

Delivery Pump

1шт.

9

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

Incl 6, 7

1шт.

10

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Incl 11

2шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

12

84270265

FITTING,M12 x 1.5 x 9/16"-18

Incl 11, 13

1шт.

13

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

14

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

15

84263753

HYDRAULIC VALVE

Priority Valve

1шт.

16

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

Incl 22

1шт.

17

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

Incl 11, 13

1шт.

18

84270256

FITTING

Incl 19, 20

1шт.

19

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

21

84355656

SEAL KIT

Services Priority Valve, Ref 15

1шт.

22

14437685

O-RING,9.30mm ID x 2.40mm

1шт.
