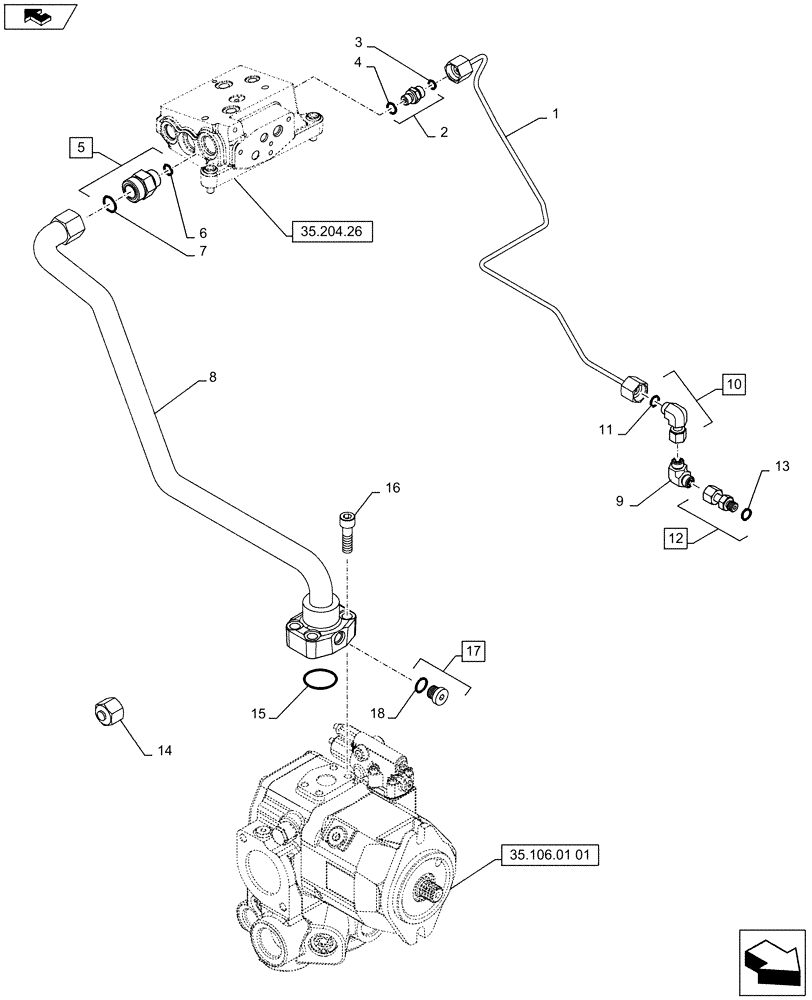

Запчасти Case IH PUMA 145 (35.200.01[01]) - HYDRAULIC SYSTEM, PUMP DELIVERY HOSE, & LOAD SENSING TUBE - C7113 (35) - HYDRAULIC SYSTEMS

1

84140147

PRESSURE PIPE

Load Sensing

1шт.

2

5185045

HYD CONNECTOR

Incl 3, 4

1шт.

3

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

4

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

5

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

Incl 6, 7

1шт.

6

5185533

HYD CONNECTOR

1шт.

7

14437185

1шт.

8

84244825

TUBE

Delivery Pump

1шт.

9

87734502

HYD CONNECTOR

1шт.

10

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Incl 10

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

87734501

HYD CONNECTOR

Incl 13

1шт.

13

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

14

47136652

PLUG,11/16"-16 ORFS

1шт.

15

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

16

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

17

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

Incl 18

1шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.
