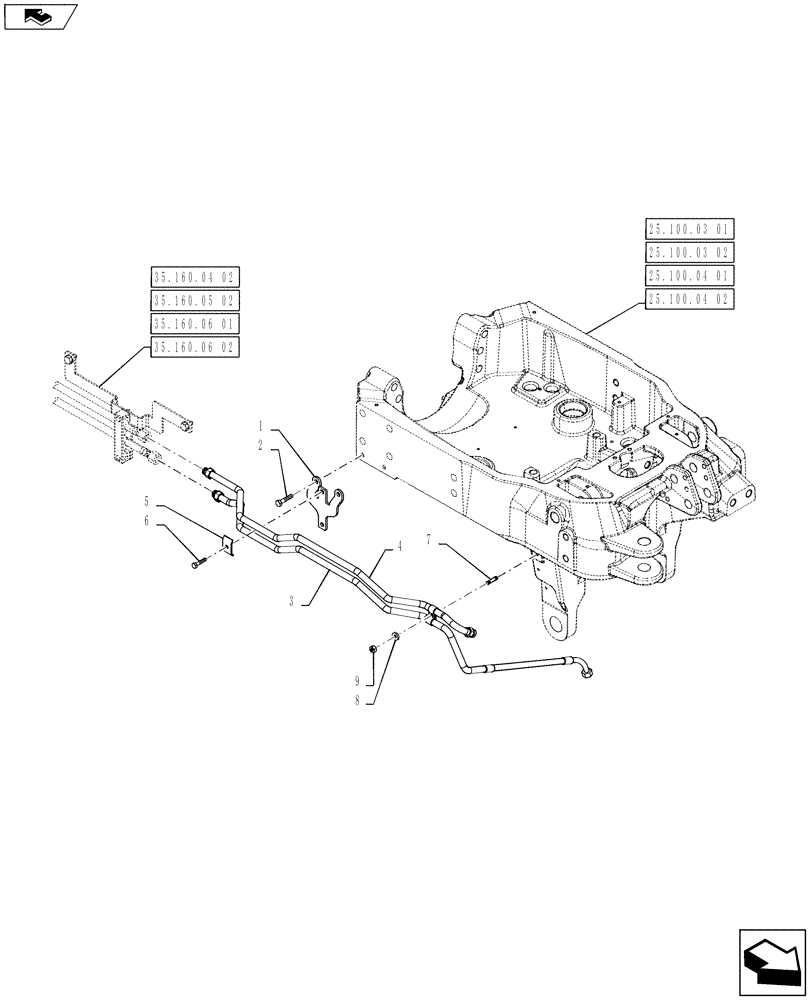

Запчасти Case IH PUMA 145 (35.160.07) - VAR - 333648, 334648, 335648, 336831, 337831 - FRONT HPL - HYDRAULIC LIFT TUBES (35) - HYDRAULIC SYSTEMS

1

84288055

BRACKET

1шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

3

84289025

PRESSURE PIPE,1409.40mm

Lift

1шт.

4

84289024

PRESSURE PIPE,1126.50mm

Lower

1шт.

5

47057074

CLAMP,48.6mm x 30mm

1шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

7

13517320

STUD,M8 x 1.25 x 35.00mm, Cl 8.8, PLN

1шт.

8

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

1шт.
