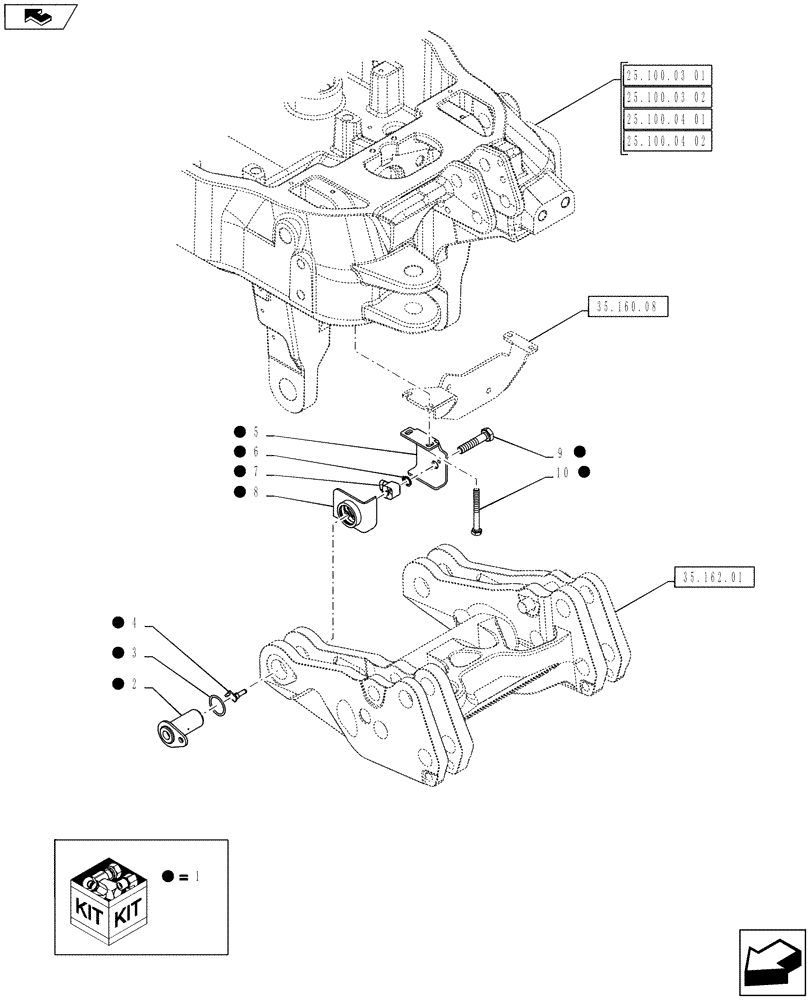

Запчасти Case IH PUMA 145 (35.160.03) - VAR - 333648, 334648, 335648, 336831, 337831 - FRONT HPL - TURN ANGLE SENSOR (35) - HYDRAULIC SYSTEMS

1

87731102

SENSOR

Incl 2 - 10

1шт.

2

47057595

PIN,40mm OD x 104mm L

1шт.

3

272470

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

4

5198408

CONTROL

1шт.

5

87731101

SUPPORT

1шт.

6

11087976

CIRCLIP,Ext., M8, BLO

1шт.

7

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Turn Angle Sensor

1шт.

8

47057598

BRACKET

1шт.

9

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

2шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.
