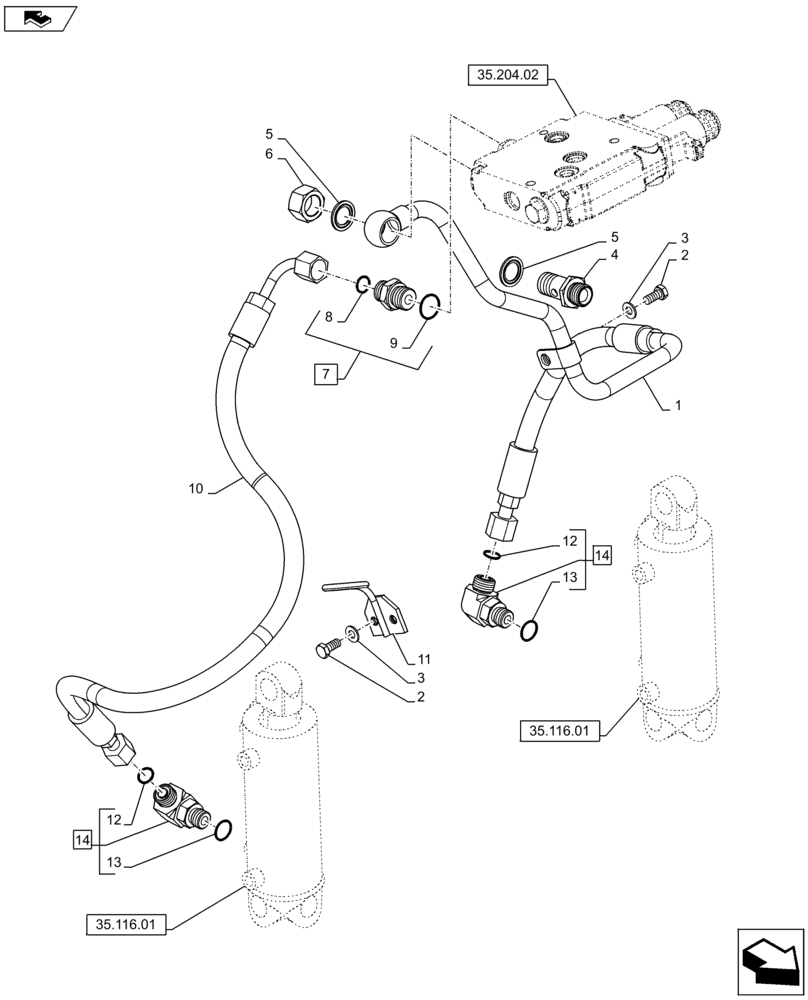

Запчасти Case IH PUMA 145 (35.132.03) - VAR - 390286 - HYDRAULIC LIFT - LINES (35) - HYDRAULIC SYSTEMS

1

84242914

TUBE,16 mm OD

1шт.

2

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

, Serial Range: -C7286

3шт.

2

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

, Start Serial: D7286

3шт.

3

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

4

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

1шт.

5

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

6

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

1шт.

7

5196305

UNION

Incl 8, 9

1шт.

8

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

10

87519167

HOSE,9.5mm ID x 880mm L, SAE 100R16

RH Cylinder

1шт.

11

87531649

BRACKET

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

14

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 12, 13

2шт.
