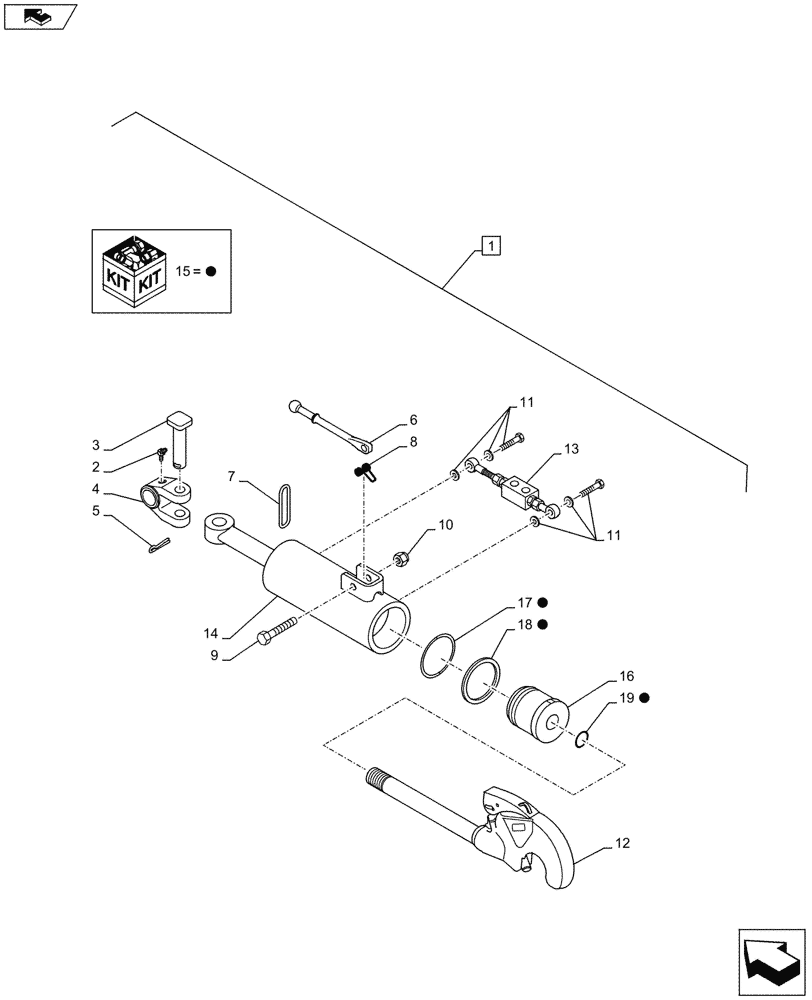

Запчасти Case IH PUMA 145 (35.124.01[02A]) - THIRD-LINK SPARG - BREAKDOWN - D7395 (35) - HYDRAULIC SYSTEMS

1

84399114

UPPER LINK

ASSY, Incl 2 - 16

1шт.

2

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

3

5161789

PIN,34mm OD x 91mm L

1шт.

4

5161787

YOKE,28mm D x 28mm D

1шт.

5

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

6

5172394

LEVER

1шт.

7

14471280

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

1шт.

8

5199923

SPRING

1шт.

9

15541221

SCREW,Hex, M12 x 1.25 x 70mm, Cl 8.8

1шт.

10

16105011

NUT,Hex, M12 x 1.25, Cl 8

1шт.

11

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

2шт.

12

84570824

TOW HOOK

1шт.

13

87710195

SHUT-OFF VALVE

1шт.

14

NSS

NOT SOLD SEPARAT

Tube Assy, Incl in 1

1шт.

15

87707442

SEALING RING

Kit, Incl 17 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

Head, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Seal Ring, Incl in 15

1шт.

18

NSS

NOT SOLD SEPARAT

Seal Ring, Incl in 15

1шт.

19

NSS

NOT SOLD SEPARAT

Seal Ring, Incl in 15

1шт.
