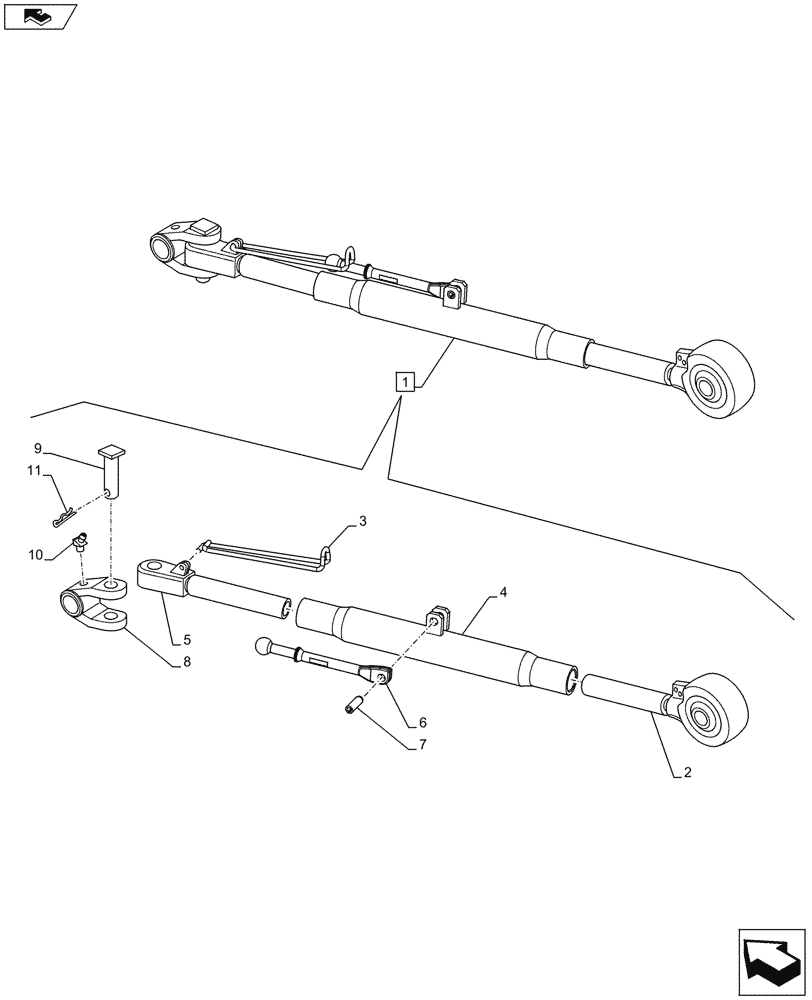

Запчасти Case IH PUMA 145 (35.120.08[01A]) - VAR - 331920 - TOP LINK - CAT 2/3 - FLEXIBLE - D7395 (35) - HYDRAULIC SYSTEMS

1

84555884

UPPER LINK

ASSY, Top Link Cat. 3, Incl 2 - 11

1шт.

2

5198083

LIFT LINK END ASSY,M36 x 3

1шт.

3

5140619

SPRING,215mm L

1шт.

4

84584442

TURNBUCKLE,M36 x 3

1шт.

5

84584445

LIFT LINK END ASSY,M36 x 3, LH Thread

1шт.

6

5172394

LEVER

1шт.

7

14613471

ROLL PIN,12mm OD x 40mm L

1шт.

8

5161787

YOKE,28mm D x 28mm D

1шт.

9

5161789

PIN,34mm OD x 91mm L

1шт.

10

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

11

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.
