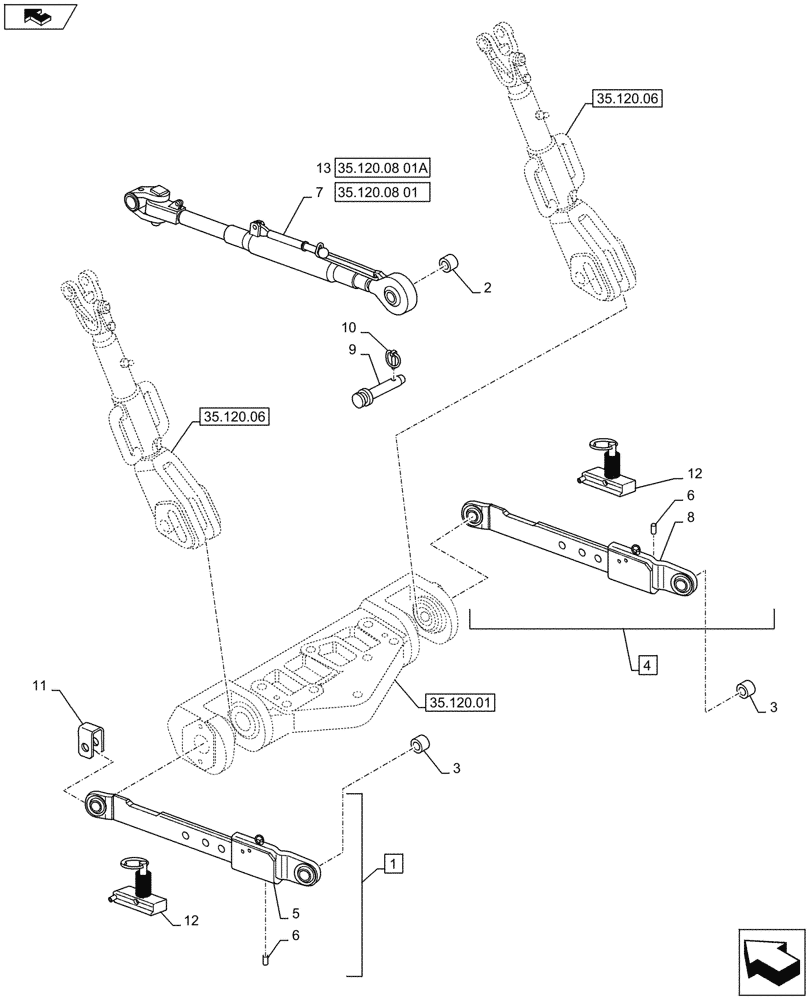

Запчасти Case IH PUMA 145 (35.120.03) - VAR - 331920 - THREE POINT HITCH - CAT 2/3 FLEXIBLE LINKS (35) - HYDRAULIC SYSTEMS

1

87391338

LOWER LINK

LH, Incl 5, 6

1шт.

2

47123097

BUSHING,25.7mm ID x 32mm OD x 51mm L

Top Link, Reducer

1шт.

3

47123096

BUSHING,28.7mm ID x 37mm OD x 45mm L

Lower Link

2шт.

4

87391339

LOWER LINK

RH, Incl 6, 8

1шт.

5

47137518

LIFT LINK END ASSY

LH, Incl 12

1шт.

6

47125841

ROLL PIN,13mm OD x 55mm L

1шт.

7

47137088

UPPER LINK

ASSY, Top Link Cat. 3, Serial Range: -C7395

1шт.

8

47137517

LIFT LINK END ASSY

RH, Incl 12

1шт.

9

822483

PIN,25.5mm OD x 137mm L

Top Link

1шт.

9

44015196

PIN,31.75mm OD x 146mm L

Top Link

1шт.

10

5166585

LOCK PIN,11mm OD

3шт.

11

87387562

BRACKET

2шт.

12

87627686

KIT

1шт.

13

84555884

UPPER LINK

ASSY, Top Link Cat. 3, Start Serial: D7395

1шт.
