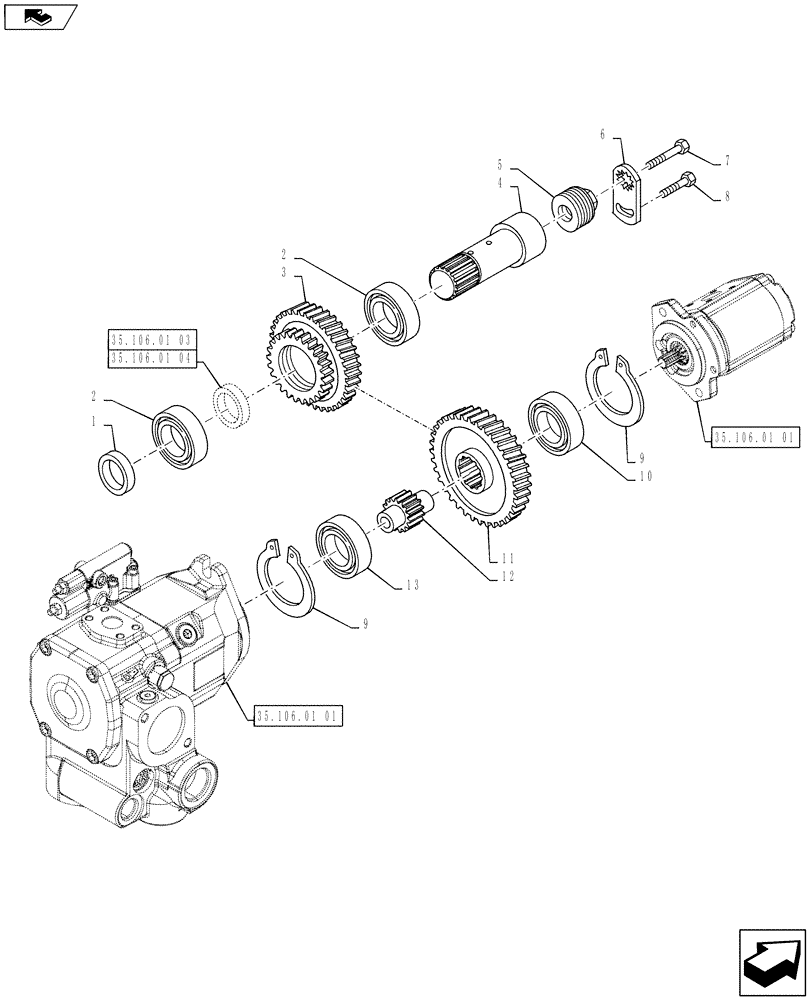

Запчасти Case IH PUMA 145 (35.106.01[02]) - VAR - 743681, 332835, 332839, 333835, 390839 - HYDRAULIC PUMP - DRIVING GEARS (35) - HYDRAULIC SYSTEMS

1

5191844

SPACER,30.4mm ID x 37.3mm OD x 8.3mm L

1шт.

2

309085

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

2шт.

3

87389628

GEAR,Z46/Z55

Intermediate

1шт.

4

84124309

SHAFT,120mm L

Intermediate

1шт.

5

47129373

RING NUT,M40, 1.50mm Pitch, 26.00mm High

1шт.

6

5196003

ADJUSTING PLATE

1шт.

7

16326621

BOLT,Hex Lock, M12 x 1.25 x 50.00mm, 8R, ZND

1шт.

8

16323321

BOLT,Hex Lock, M10 x 1.25 x 20.00mm, 8R, ZND

1шт.

9

11061976

SNAP RING,M80, Int

2шт.

10

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

11

87389629

GEAR,Z41

Driven

1шт.

12

47130581

SHAFT,75mm L

1шт.

13

47137885

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

1шт.
