(33.224.10) - VAR - 332727, 743692 - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - QUICK HITCH AND PIPES

Запчасти Case IH PUMA 145 (33.224.10) - VAR - 332727, 743692 - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - QUICK HITCH AND PIPES (33) - BRAKES & CONTROLS

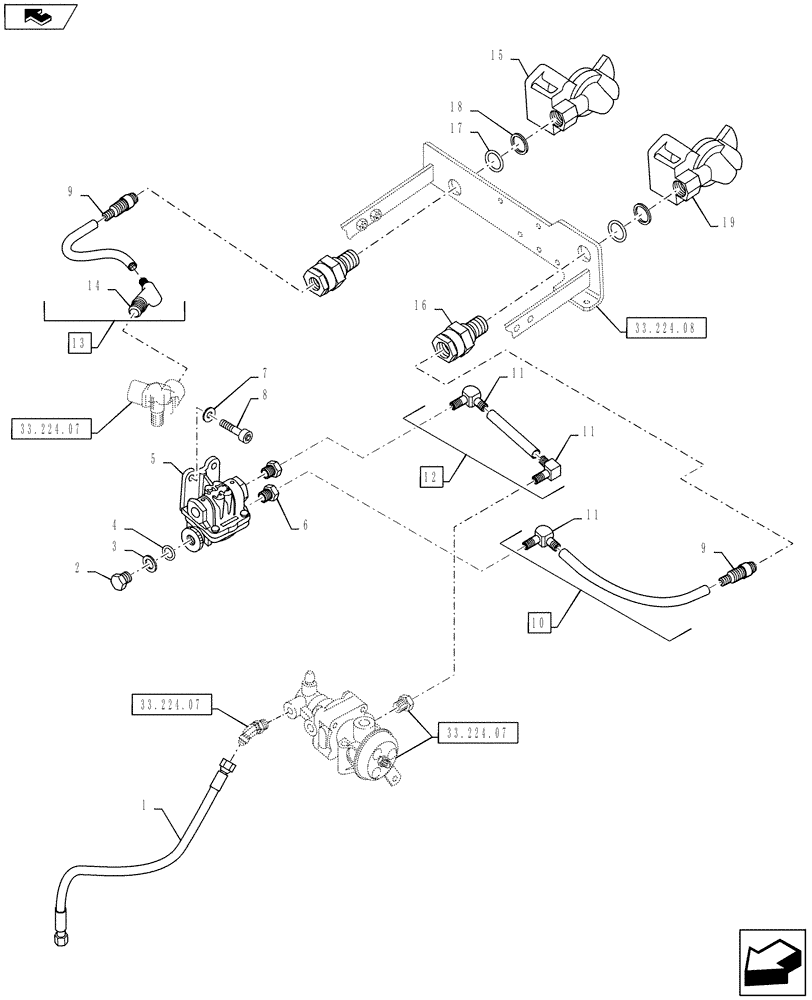

Схема запчастей Case IH PUMA 145 - (33.224.10) - VAR - 332727, 743692 - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - QUICK HITCH AND PIPES (33) - BRAKES & CONTROLS
12
10
17
home
33.224.08
33.224.07
33.224.07
33.224.07
9
14
11
18
15
11
1
19
16
7
11
8
3
6
13
4
5
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84149763

HYDRAULIC HOSE,425.00mm

Advance

1шт.

2

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

3

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

4

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

5

84157669

VALVE

1шт.

6

87588079

HYD CONNECTOR,M16 x 1.5

2шт.

7

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

8

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

87588082

HYD CONNECTOR,M12 x 1.5

2шт.

10

84233103

FLEXIBLE HOSE,12.00mm OD x 265.00mm

Incl 9, 11

1шт.

11

87588080

90 ELBOW,NG8 x 12mm D

3шт.

12

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

Incl 11

1шт.

13

87702812

HOSE,12.00mm OD x 315.00mm

Incl 9, 14

1шт.

14

87642190

HYD CONNECTOR

1шт.

15

82001019

COUPLING

Supply Line

1шт.

16

87678128

ADAPTER

2шт.

17

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

18

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

2шт.

19

82001020

COUPLING

Control Line

1шт.
