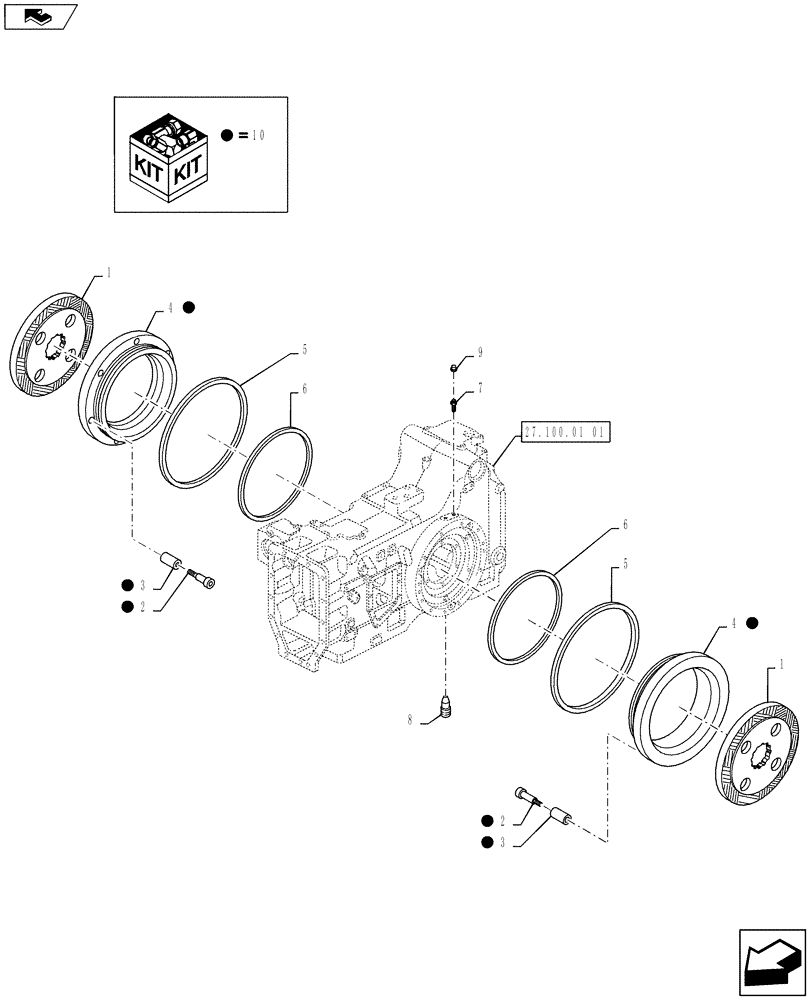

Запчасти Case IH PUMA 145 (33.202.06) - REAR AXLE - BRAKES - PUMA 130 & 145 (33) - BRAKES & CONTROLS

1

87397895

BRAKE DISC,60mm ID x 327mm OD x 9.6mm Thk

, Serial Range: -C6852

2шт.

1

84335031

BRAKE DISC,60mm ID x 327.00mm OD x 9.6mm Thk 14T

, Start Serial: D6852

2шт.

1

84329059

BRAKE DISC,60mm ID x 327.00mm OD x 9.6mm Thk 14T

Extreme Duty, VAR. 333166, Start Serial: D6852

2шт.

2

87699823

SCREW,M10 x 1.25 x 31.50mm, Cl 10.9

3шт.

3

87700832

BUSHING,15.3mm ID x 21.9mm OD x 19.83mm L

3шт.

4

87316486

PISTON

2шт.

5

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

2шт.

6

87699824

SEAL,Square, 3.4mm Thk x 253.1mm ID, 80 Duro

2шт.

7

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

2шт.

8

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

2шт.

9

5171793

BOOT

2шт.

10

87687292

PISTON & RINGS KIT

Incl 2, 3, 4

2шт.
