Запчасти Case IH PUMA 145 (29.100.01[01]) - HYDROSTATIC TRANSMISSION (29) - HYDROSTATIC DRIVE

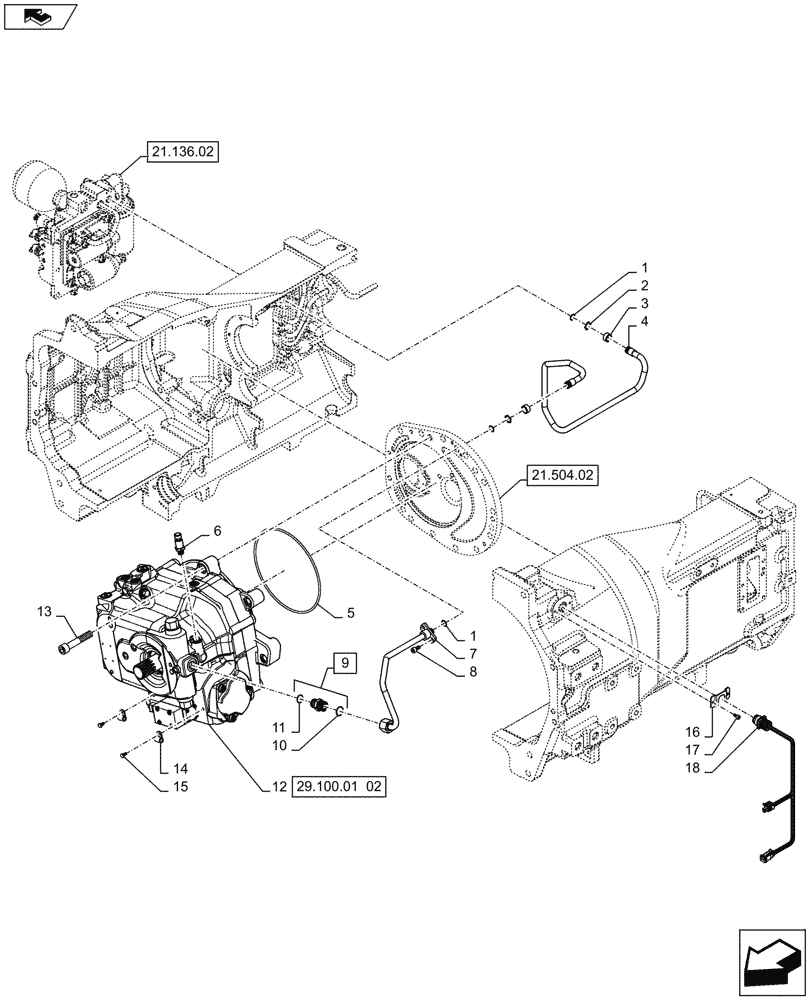

Схема запчастей Case IH PUMA 145 - (29.100.01[01]) - HYDROSTATIC TRANSMISSION (29) - HYDROSTATIC DRIVE
21.136.02
16
17
15
4
10
2
18
3
11
1
7
5
14
8
12
6
1
9
13
29.100.01 02
21.504.02
home

Артикул

Название

Примечание

Количество

1

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

3шт.

2

84304518

SNAP RING,1mm Thk

2шт.

3

87630110

BUSHING,17mm ID x 21mm OD x 10.7mm L

2шт.

4

84304517

PRESSURE PIPE

1шт.

5

14468980

GASKET,0.139" Thk x 9.234" ID, -271, Cl 5, 75 Duro

1шт.

6

87678027

PRESSURE SWITCH

1шт.

7

84359808

TUBE

1шт.

8

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

2шт.

9

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 10, 11

1шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

84356582

TRANSMISSION, HYDROS

1шт.

12

84356582R

REMAN-HYDROSTAT MOTO

PUMA 130, PUMA 145, PUMA 160, All TRACTOR - CVT (12/10-)

1шт.

12

84356582C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

13

14314721

SCREW,M16 x 1.5 x 90mm

4шт.

14

10441190

CLAMP,8mm, Coat, 7mm Bolt Hole, P Type

2шт.

15

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

16

84151129

BRACKET

1шт.

17

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.

18

84301914

WIRE HARNESS

1шт.

Выбрано товаров: 20
