Запчасти Case IH PUMA 145 (27.120.07) - VAR - 330340 - ADDITIONAL HUBS FOR DUAL OUTER STEEL WHEELS FOR 112" BAR AXLES - HUBS (27) - REAR AXLE SYSTEM

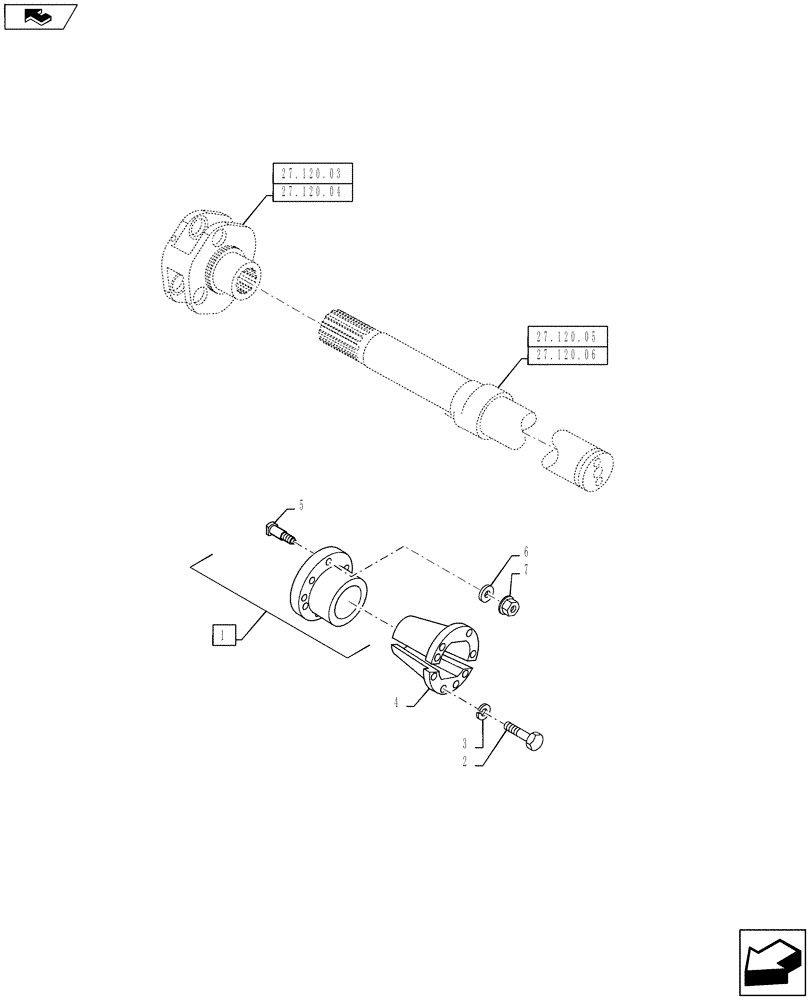

Схема запчастей Case IH PUMA 145 - (27.120.07) - VAR - 330340 - ADDITIONAL HUBS FOR DUAL OUTER STEEL WHEELS FOR 112" BAR AXLES - HUBS (27) - REAR AXLE SYSTEM
1
27.120.04
27.120.05
27.120.06
27.120.03
home
3
2
4
7
6
5

Артикул

Название

Примечание

Количество

1

87688498

HUB

Incl 5, Serial Range: -C7400

2шт.

1

47728569

HUB

, Start Serial: D7400

2шт.

2

11125124

BOLT,Hex, M20 x 70, 8.8

, Serial Range: -C7400

12шт.

2

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

, Start Serial: D7400

12шт.

3

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

12шт.

4

5198605

BUSHING

, Serial Range: -C7400

2шт.

4

47699301

HUB

, Start Serial: D7400

2шт.

5

87651027

STUD,M18 x 1.5 x 85mm, Cl 10.9

16шт.

6

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.

7

87651026

NUT,M18, 1.5mm Pitch, Captive Wshr

16шт.

Выбрано товаров: 10
