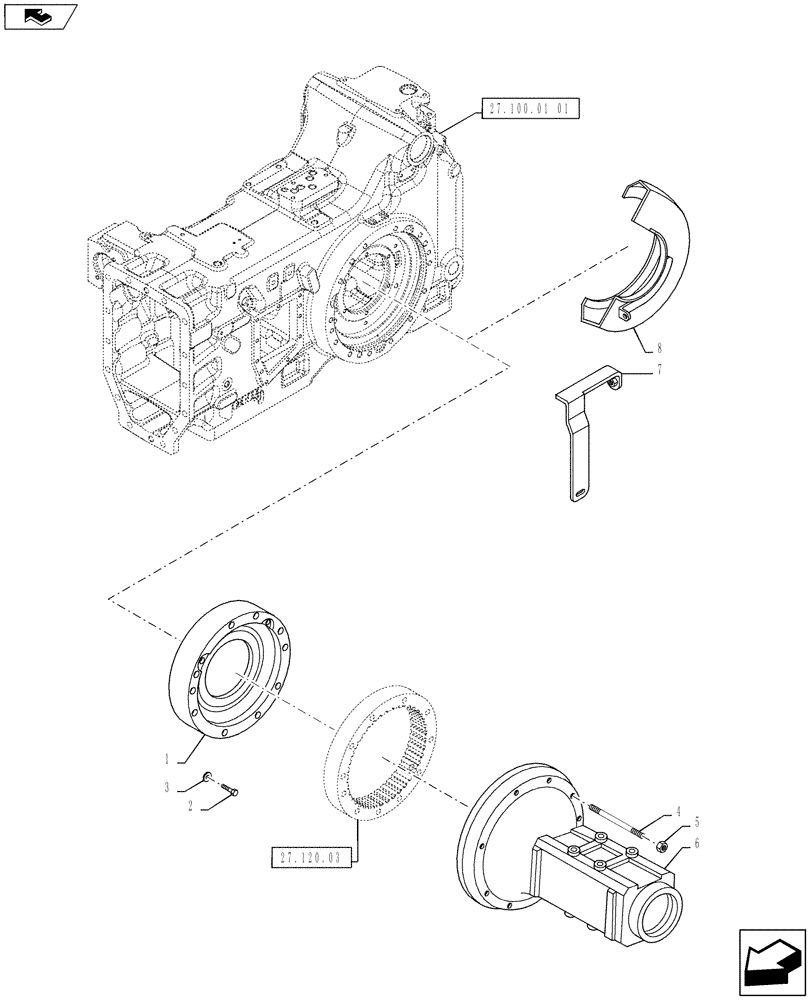

Запчасти Case IH PUMA 145 (27.120.01) - VAR - 390319, 330330, 330332, 331331, 331332 -REAR AXLE - FINAL DRIVE HOUSING - PUMA 130 & 145 (27) - REAR AXLE SYSTEM

1

87372500

SPACER,210mm ID x 405mm OD x 52mm L

2шт.

2

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

3

14496424

WASHER,6mm ID x 12.5mm OD x 1.6mm Thk

2шт.

4

13557830

STUD,M14 x 1.5 x 20.00mm x 150.00mm, Cl 10.9, PLN

14шт.

4

13558430

STUD,M14 x 1.5 x 20.00mm x 170.00mm, Cl 10.9, PLN

10шт.

5

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

24шт.

6

5164731

FINAL DRIVE HOUSING

2шт.

7

84141569

SUPPORT

1шт.

8

84141567

GUARD

1шт.
