(27.100.02) - VAR - 390333 - REAR AXLE HOUSING - SUPPORT COVERS

Запчасти Case IH PUMA 145 (27.100.02) - VAR - 390333 - REAR AXLE HOUSING - SUPPORT COVERS (27) - REAR AXLE SYSTEM

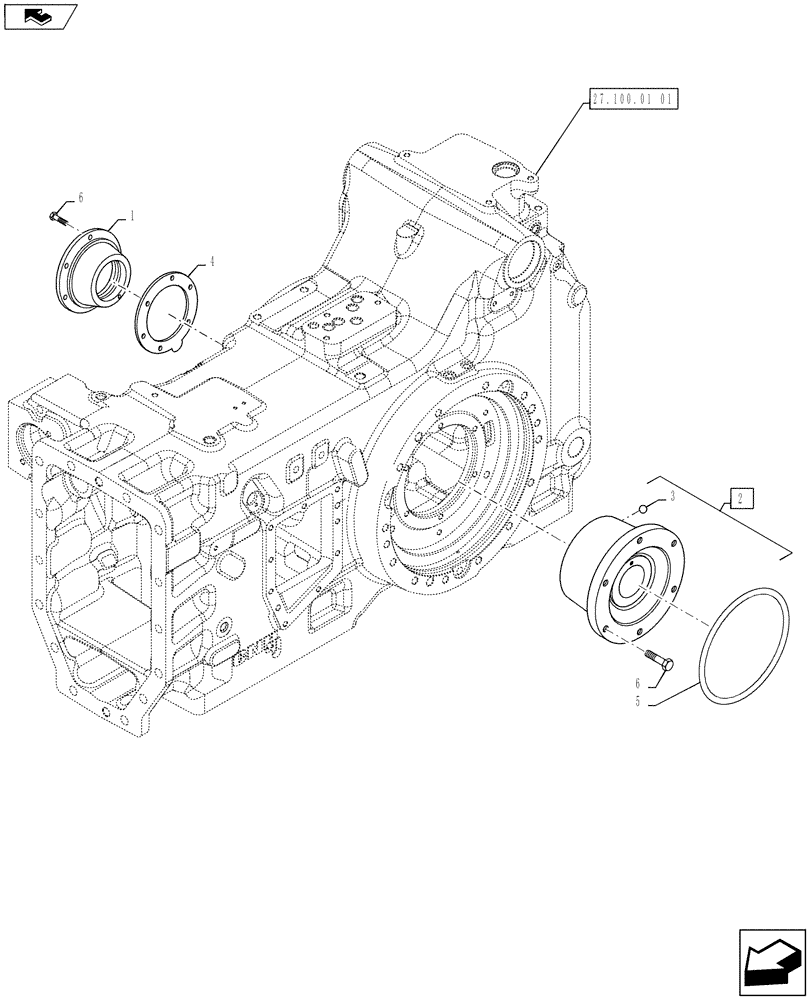

Схема запчастей Case IH PUMA 145 - (27.100.02) - VAR - 390333 - REAR AXLE HOUSING - SUPPORT COVERS (27) - REAR AXLE SYSTEM
1
4
6
home
27.100.01 01
5
3
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5162538

SUPPORT

1шт.

2

87691135

SUPPORT

Incl 3

1шт.

3

20063460

BALL,7.14mm OD, Gr 100

1шт.

4

87635512

SHIM,168.00mm ID x 208.00mm OD x 0.15mm T

1шт.

4

87635513

SHIM,168.00mm ID x 208.00mm OD x 0.20mm T

1шт.

4

87635514

SHIM,168.00mm ID x 208.00mm OD x 0.50mm T

1шт.

5

14462280

O-RING,6.237" ID x 0.103" Width

1шт.

6

14233724

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

12шт.
