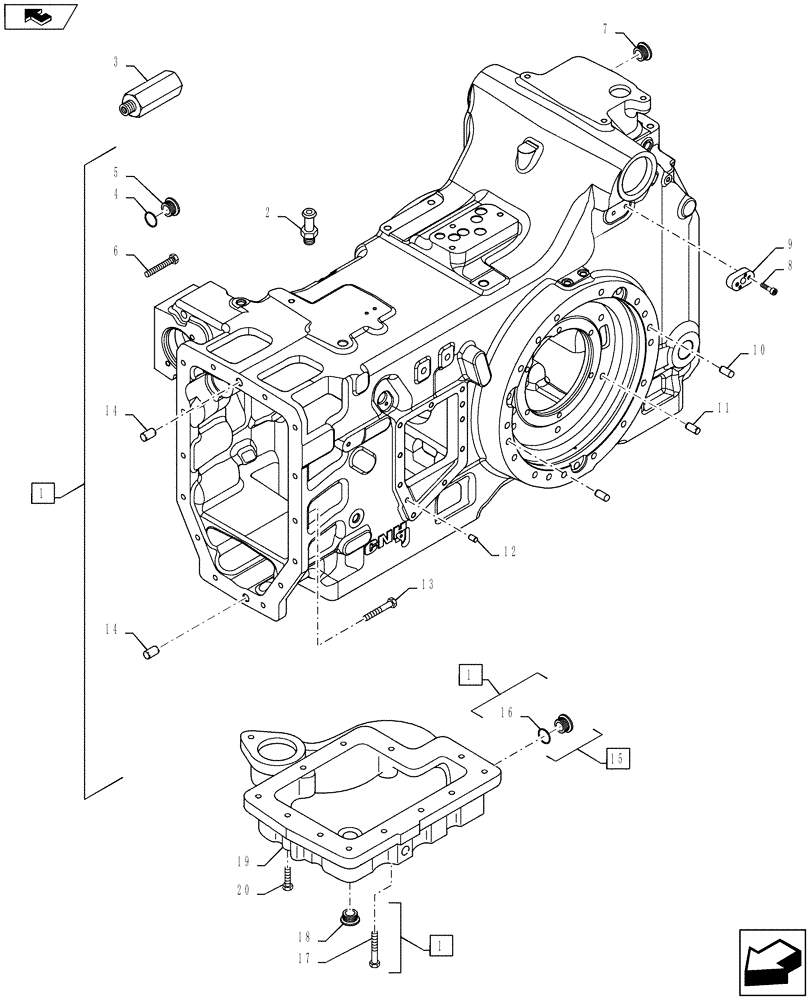

Запчасти Case IH PUMA 145 (27.100.01[01]) - REAR AXLE HOUSING (27) - REAR AXLE SYSTEM

1

84312157

HOUSING

Rear Axle, Incl 10 - 12, 14 & Fig 27.100.01(02) Ref 1, 2, 4 - 10, 13, 15 - 18, Puma 130 & 145

1шт.

1

84312059

HOUSING

Rear Axle, Incl 10 - 12, 14 & Fig 27.100.01(02) Ref 1, 2, 4 - 10, 13, 15 - 18, Puma 160

1шт.

2

82894853

FITTING,69 D x 3/16"-1/8

1шт.

3

87683202

PLUG,Hex, M16 x 1.5 x M8 x 1.25

1шт.

4

14437885

O-RING,13.30mm ID x 2.40mm

4шт.

5

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

3шт.

6

15840534

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

8шт.

6

15981134

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

2шт.

7

83957506

PLUG,3/4"

1шт.

8

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

9

47132374

SPACER

1шт.

10

5110200

DOWEL,12mm OD x 25mm L

Puma 160

4шт.

11

5110200

DOWEL,12mm OD x 25mm L

Puma 130 & 145

10шт.

11

84160085

DOWEL,M12 x 30.00mm

Puma 160

6шт.

12

10839710

DOWEL,M10 x 15.00mm

2шт.

13

15860134

BOLT,Hex, M14 x 1.5 x 50mm, Cl 10.9

4шт.

14

4985062

DOWEL,15mm OD x 25mm L

4шт.

15

5185747

PLUG,1"13/16-12

Incl 16

1шт.

16

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

17

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

3шт.

18

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

19

84209489

COVER

HOUSING

1шт.

20

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

9шт.
