(25.108.03) - VAR - 330414, 390409 - CL.3 FRONT AXLE W/ OUT BRAKES - ARTICULATED AXLE SHAFT

Запчасти Case IH PUMA 145 (25.108.03) - VAR - 330414, 390409 - CL.3 FRONT AXLE W/ OUT BRAKES - ARTICULATED AXLE SHAFT (25) - FRONT AXLE SYSTEM

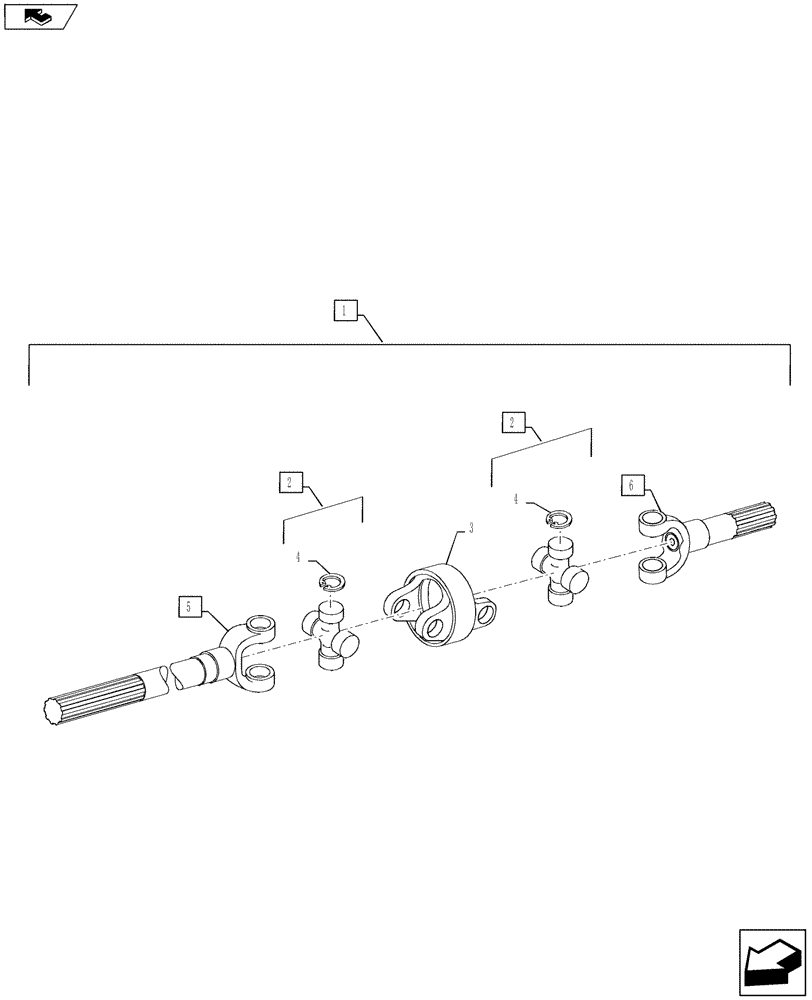

Схема запчастей Case IH PUMA 145 - (25.108.03) - VAR - 330414, 390409 - CL.3 FRONT AXLE W/ OUT BRAKES - ARTICULATED AXLE SHAFT (25) - FRONT AXLE SYSTEM
3
2
1
4
4
5
2
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84194811

SHAFT

RH, Incl 2, 3, 5 & 6

1шт.

1

84194820

ARTICULATED SHAFT

LH, Incl 2, 3, 5 & 6

1шт.

2

5191547

U-JOINT SPIDER

Incl 4

2шт.

3

87361042

YOKE

Double

1шт.

4

5191548

CIRCLIP

8шт.

5

5197765

LONG SHAFT FORK,733.00mm

RH

1шт.

5

5197763

LONG SHAFT FORK,671.00mm

LH

1шт.

6

84201642

SHORT SHAFT FORK

1шт.

Выбрано товаров: 8
