Запчасти Case IH PUMA 145 (25.102.18) - DIFFERENTIAL LOCK LINES - 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM

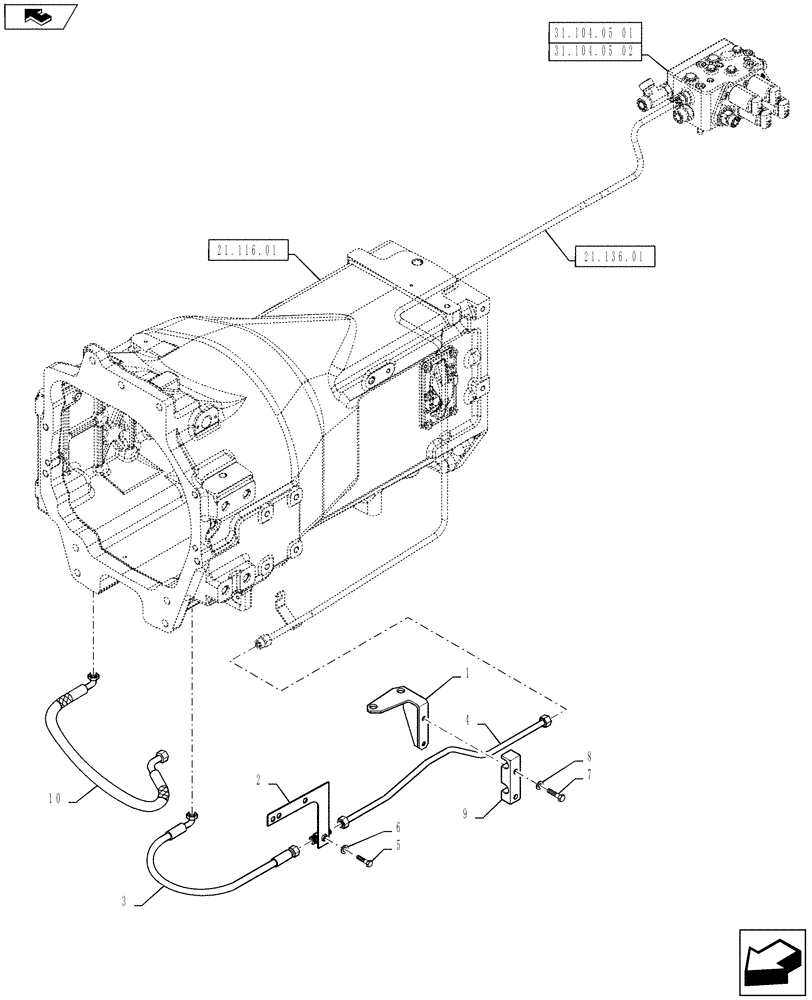

Схема запчастей Case IH PUMA 145 - (25.102.18) - DIFFERENTIAL LOCK LINES - 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM
9
5
4
1
7
10
8
3
6
2
home
31.104.05 01
31.104.05 02
21.116.01
21.136.01

Артикул

Название

Примечание

Количество

1

82037221

BRACKET

Front Diff

1шт.

2

87702718

BRACKET

Diff Lock Tube, Non-Suspended Front Axle Only

1шт.

3

87352542

HOSE,550.00mm

Non-Suspended Front Axle Only

1шт.

4

87702716

TUBE

Front Diff, Non-Suspended Front Axle Only

1шт.

4

87702717

TUBE

Suspended Front Axle Only

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

Non-Suspended Front Axle Only

2шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

Non-Suspended Front Axle Only

2шт.

7

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

9

82029228

CLAMP,2 Hoses

1шт.

10

82036783

FLEXIBLE HOSE,9.53mm ID x 580mm L, SAE 100R2

Suspended Front Axle Only

1шт.

Выбрано товаров: 11
