Запчасти Case IH PUMA 145 (25.102.17[01]) - VAR - 330408, 330429, 330430, 390408 - CL.4 FRONT AXLE - DIFFERENTIAL (25) - FRONT AXLE SYSTEM

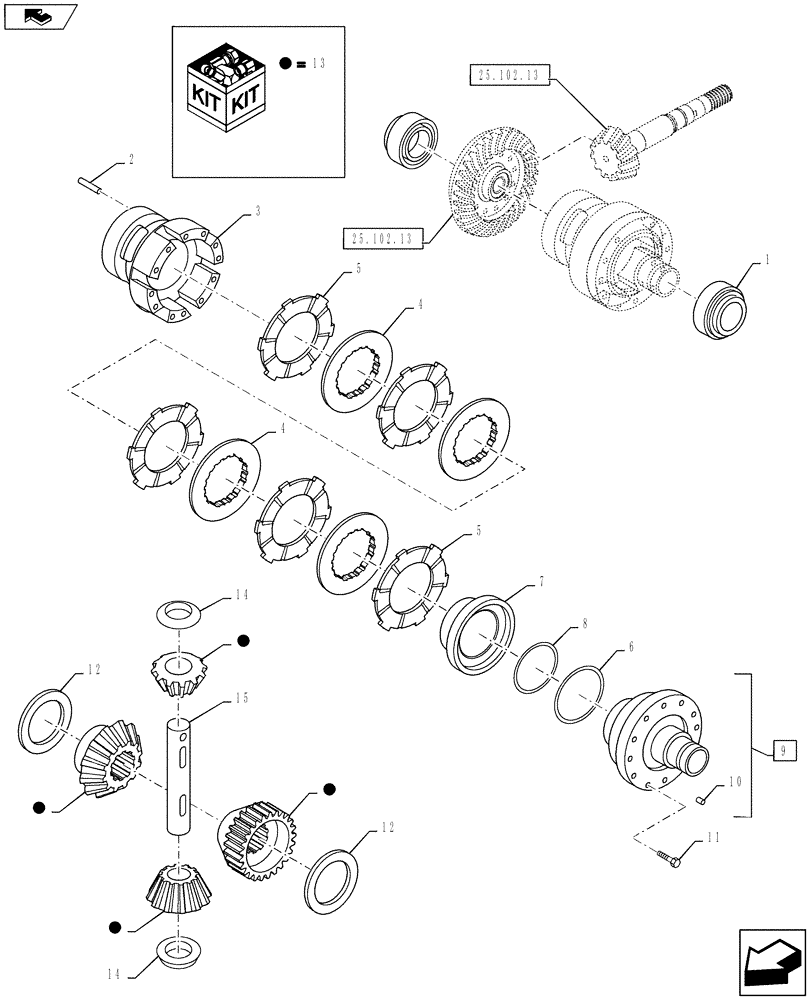

Схема запчастей Case IH PUMA 145 - (25.102.17[01]) - VAR - 330408, 330429, 330430, 390408 - CL.4 FRONT AXLE - DIFFERENTIAL (25) - FRONT AXLE SYSTEM
13
14
4
5
4
2
13
11
10
8
13
25.102.13
25.102.13
1
14
5
13
15
12
13
12
13
7
6
9
3
home

Артикул

Название

Примечание

Количество

1

87568699

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

2

87357828

PIN

1шт.

3

87331244

HOUSING

1шт.

4

5193452

DISC

5шт.

5

5192489

DISC

6шт.

6

14467281

O-RING,0.139" Thk x 5.484" ID, -254, Cl 7, 75 Duro

1шт.

7

5192492

PISTON

1шт.

8

14465181

O-RING,2.859" ID x 3.127" OD x 0.139"

1шт.

9

87331240

HALF-FLANGE

Incl 10

1шт.

10

5198864

PLUG

1шт.

11

84394072

BOLT,M10 x 1.25 x 30mm

12шт.

12

5192568

SHIM,45.00mm ID x 66.00mm OD x 2.60mm

1шт.

12

5192569

SHIM,45.00mm ID x 66.00mm OD x 2.70mm

1шт.

12

5192570

SHIM,45.00mm ID x 66.00mm OD x 2.80mm

1шт.

12

5192571

SHIM,45.00mm ID x 66.00mm OD x 2.90mm

1шт.

12

5192475

SHIM,45.00mm ID x 66.00mm OD x 3.00mm

1шт.

12

5192572

SHIM,45.00mm ID x 66.00mm OD x 3.10mm

1шт.

12

5192573

SHIM,45.00mm ID x 66.00mm OD x 3.20mm

1шт.

12

5192574

SHIM,45.00mm ID x 66.00mm OD x 3.30mm

1шт.

12

5192575

SHIM,45.00mm ID x 66.00mm OD x 3.40mm

1шт.

13

47129159

GEAR SET

1шт.

14

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

15

87329332

AXLE DIFFERENTIAL

1шт.

Выбрано товаров: 23
