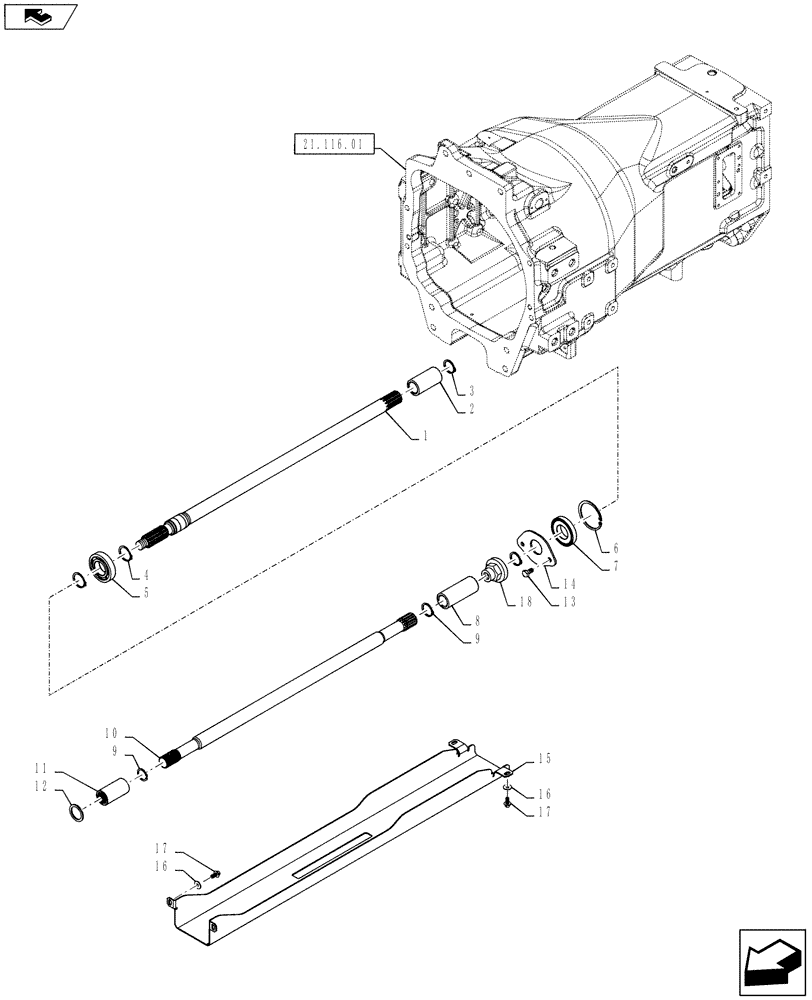

Запчасти Case IH PUMA 145 (23.314.01) - VAR - 395449, 390286 - FOUR WHEEL DRIVE PROPELLER SHAFT FOR FIXED FRONT AXLE (23) - FOUR WHEEL DRIVE SYSTEM

1

87599007

SHAFT,953mm L

1шт.

2

5172239

SPLINED COUPLING,12T

1шт.

3

11058876

SNAP RING,M30, Int

1шт.

4

11068876

SNAP RING,M40, Ext

2шт.

5

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

6

11061976

SNAP RING,M80, Int

1шт.

7

47134818

SEAL,40mm ID x 80mm OD x 15mm Thk

1шт.

8

47135384

SPLINED COUPLING,12T

1шт.

9

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

10

87399307

PROPELLER SHAFT,12T, 14T, 921mm L

1шт.

11

5150124

SLEEVE,14T

1шт.

12

5143583

SHIM,31.7mm ID x 42mm OD x 1mm Thk

1шт.

12

5143584

SHIM,31.7mm ID x 42mm OD x 1.2mm Thk

1шт.

12

5143585

SHIM,31.7mm ID x 42mm OD x 1.5mm Thk

1шт.

12

5143586

SHIM,32mm ID x 42mm OD x 1.8mm Thk

1шт.

12

5143587

SHIM,31.7mm ID x 42mm OD x 2mm Thk

1шт.

12

5143588

SHIM,31.7mm ID x 42mm OD x 2.2mm Thk

1шт.

12

5143589

SHIM,31.7mm ID x 42mm OD x 2.5mm Thk

1шт.

12

5143590

SHIM,31.7mm ID x 42mm OD x 2.8mm Thk

1шт.

12

5143591

SHIM,31.7mm ID x 42mm OD x 3mm Thk

1шт.

12

5143592

WASHER,31.70mm ID x 42.00mm OD x 3.30mm T

1шт.

12

5143593

WASHER,31.7mm ID x 42mm OD x 3.7mm Thk

1шт.

12

5143594

WASHER,31.7mm ID x 42mm OD x 4mm Thk

1шт.

12

5143595

WASHER,31.7mm ID x 42mm OD x 4.3mm Thk

1шт.

13

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

14

47135527

FLANGE

1шт.

15

87389033

SHIELD

1шт.

16

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.

17

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

4шт.

18

5111953

NUT,M24 x 1.5

1шт.
